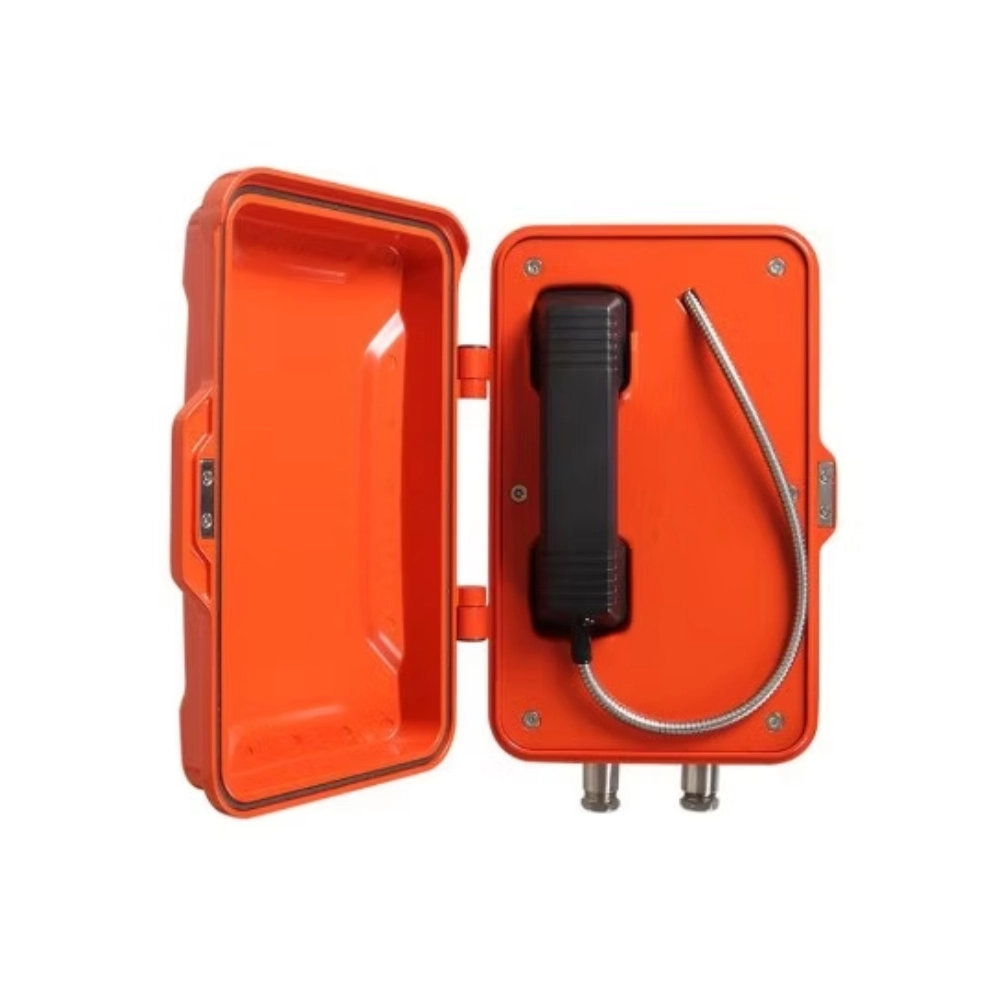

JREX106-A01 CB SIP Hotline Explosion-proof SIP Telephone
AED 3,372.06 VAT included
Hotline SIP explosion-proof telephone with aluminium IP66 door enclosure and PoE or 12 V DC power for emergency calls over IP networks.
Description
The JREX106-A01 CB SIP is a hotline SIP/VoIP explosion-proof telephone for hazardous industrial locations. Its aluminium die-cast enclosure with protective door provides IP66 protection against dust, water and mechanical impact, while the robust handset and armoured cord are engineered for use in demanding environments. A noise-reducing microphone ensures clear communication even in high background noise.
The telephone is fully compliant with SIP 2.0 and integrates with SIP-based IP-PBX systems. In hotline mode it automatically connects to a pre-configured extension or SIP address when the handset is lifted, speeding up emergency response. The unit supports multiple codecs, PoE or 12 V DC power, dual Ethernet ports, web-based configuration, diagnostics and firmware updates, making it straightforward to deploy and maintain in critical safety and process communication networks.
Features
- Explosion-proof SIP telephone with aluminium die-cast door enclosure rated to IP66.
- Hotline SIP configuration automatically connects to a pre-set emergency extension or SIP URI.
- Compatible with SIP 2.0 IP-PBX platforms for integration into plant-wide VoIP systems.
- Powered via PoE or 12 V DC, reducing cabling complexity in the field.
- Supports common voice codecs including G.711 A-law, G.711 μ-law, G.722, G.723 and G.729.
- Rugged handset with armoured cord and noise-reduction microphone for clear communication.
- Dual 10/100Base-T Ethernet ports allow daisy-chaining of a PC or additional device.
- Web-based configuration interface with firmware upgrade and self-diagnostic functions.
- Supports sequential calling, call transfer, MIC mute and other advanced telephony features.
- Designed for hazardous areas where reliable emergency calling is required.
Specifications
- Power supply: PoE (IEEE 802.3af) or 12 V DC via external adaptor.
- Typical power consumption: about 1.5 W when idle and 1.8 W during a call.
- Supported signalling protocol: SIP 2.0 in accordance with RFC 3261.
- Voice codecs supported: G.711 A-law, G.711 μ-law, G.722 wideband, G.723 and G.729.
- DTMF signalling methods: SIP INFO, in-band audio and RFC 2833.
- Network interfaces: dual 10/100Base-T RJ-45 ports (WAN and LAN) with Auto-MDIX.
- Ringing volume at 1 m: approximately 90–95 dB(A).
- Echo cancellation compliant with ITU-T G.168, supporting hands-free mode up to 96 ms echo tail.
- Environmental protection: IP66 aluminium enclosure with three M20 cable-gland entries.
- Operating temperature range: −40 °C to +65 °C; storage temperature: −40 °C to +75 °C.
