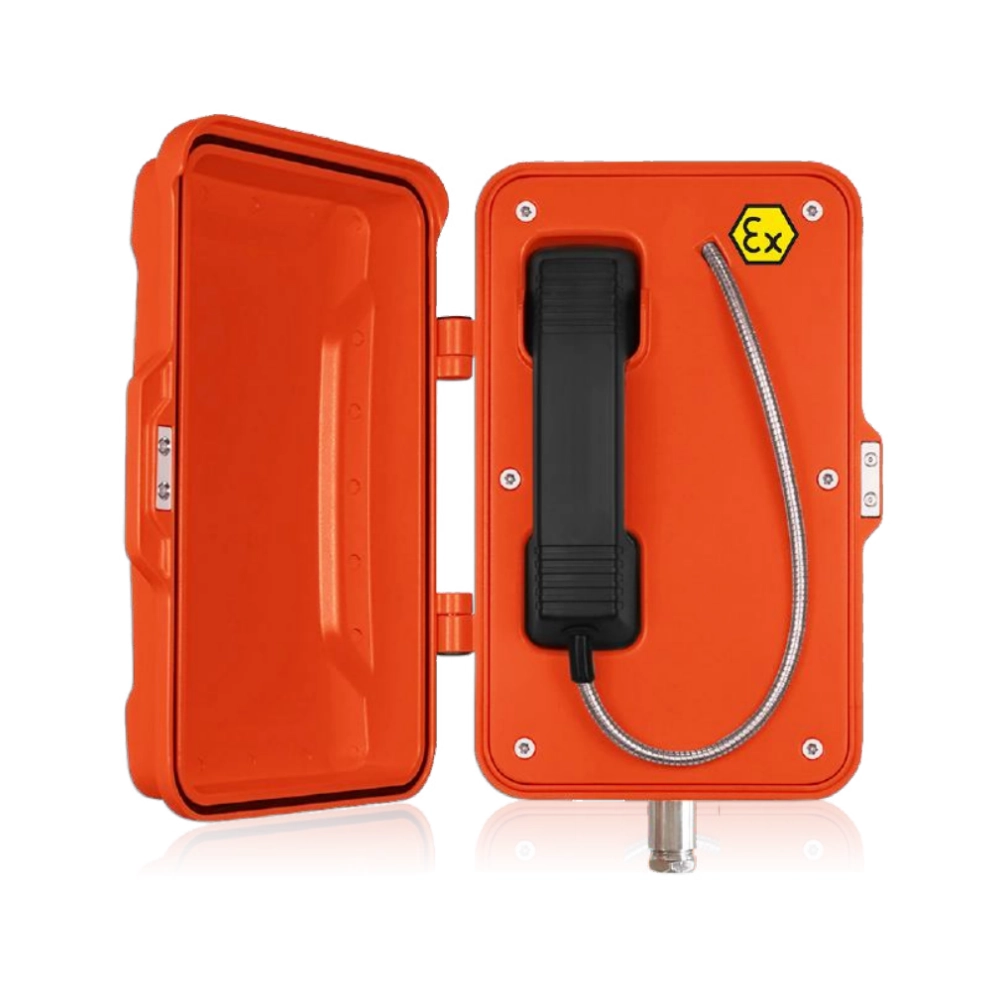

JREX106-A01 SIP Explosion-proof Telephone with Door
AED 3,455.95 VAT included
Door-enclosed SIP/VoIP explosion-proof telephone with IP66 aluminium housing and PoE or 12 V DC power.
Description
The JREX106-A01 SIP is a VoIP explosion-proof telephone for hazardous areas. Its aluminium die-cast enclosure with door cover achieves IP66 protection, while a rugged handset and armoured cord withstand heavy industrial use. The device supports SIP 2.0, multiple audio codecs and full‑duplex operation, making it suitable for integration with IP‑PBX systems.
Features include speed-dial keys, mute and redial functions, remote configuration through a web interface and PoE power to simplify installation. The telephone is certified to ATEX, IECEx, EAC and INMETRO standards.
Features
- Aluminium alloy IP66 housing with door for harsh environments.
- SIP 2.0 compliant VoIP endpoint for IP‑PBX integration.
- Full rubber keypad with memory, mute and redial functions.
- Rugged handset with noise‑cancelling microphone and armoured cord.
- Supports multiple speed‑dial memories for emergency contacts.
- Web-based configuration and firmware upgrades.
- PoE support simplifies cabling in hazardous zones.
- Certified for use in explosive gas and dust atmospheres.
Specifications
- Power supply: PoE (802.3af) or 12 V DC via adaptor.
- Power consumption: around 1.5 W idle, 1.8 W in operation.
- SIP protocol: SIP 2.0 (RFC 3261).
- Network ports: 10/100Base‑T RJ‑45 for LAN and PC, auto‑MDIX.
- Voice codecs: G.711 A/µ, G.722, G.723, G.729.
- Communication mode: full duplex.
- Ringing volume: roughly 90–95 dB(A) at 1 m.
- Supports SIP authentication, DTMF via SIP INFO, in‑band and RFC 2833.
- Web management with firmware upload and self-diagnostic tools.
- Operating temperature: −40 °C to +65 °C; storage −40 °C to +75 °C.
