JREX106-A01 Analogue Explosion-proof Telephone with Door
AED 3,036.54 VAT included

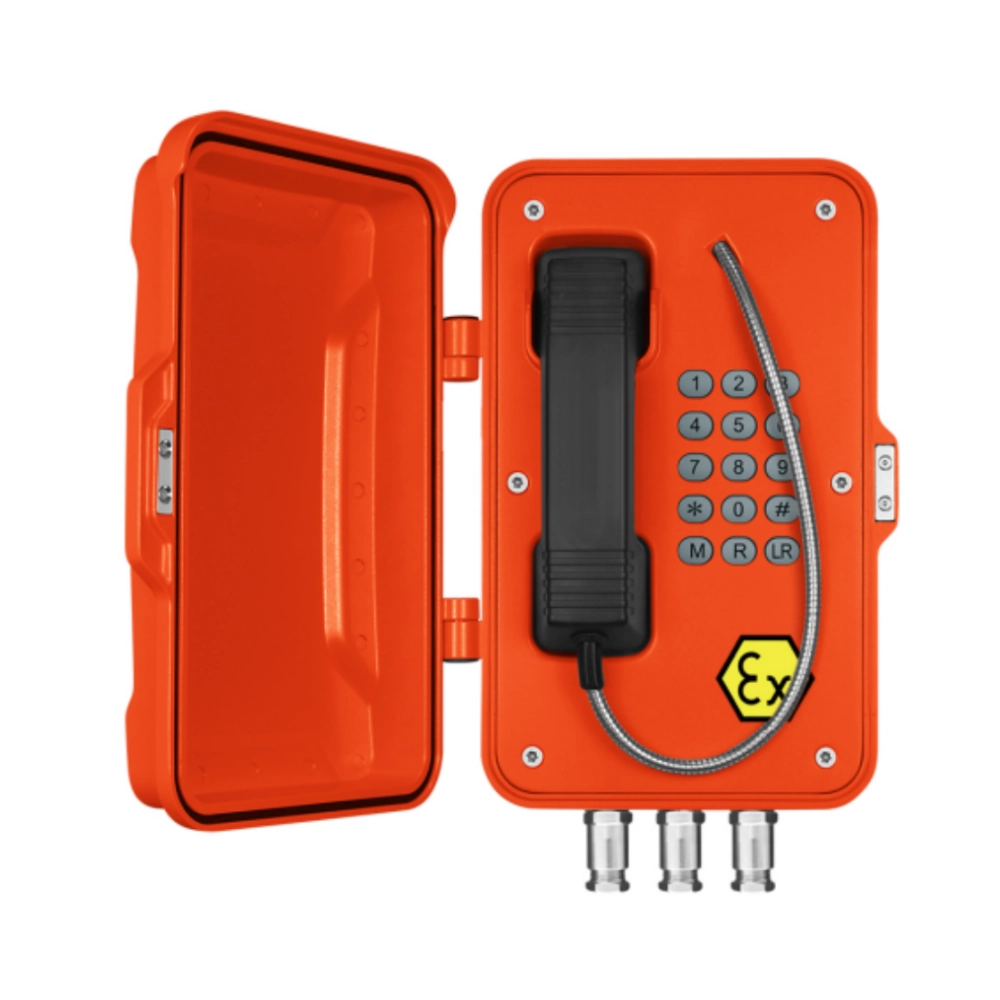

Door-covered analogue explosion-proof telephone for hazardous areas with IP66 aluminium housing.
Description
The JREX106-A01 AL is an analogue explosion-proof telephone supplied with a protective door enclosure. Its aluminium alloy die-cast body provides IP66 ingress protection and resists sea water, dust and corrosive atmospheres. A robust handset with armoured cord and noise-reduction circuitry delivers reliable emergency communications in hazardous industrial locations.
The unit supports speed dial memory, remote programming via DTMF and integration with standard analogue PABX systems. It is well suited to petrochemical plants, offshore platforms and other areas where voice communication must remain available in explosive gas or dust environments.
Features
- Aluminium alloy die‑cast body with IP66 protection.
- Supplied with a protective door enclosure for added environmental sealing.
- Advanced noise-reduction technology for clearer HD‑quality calls.
- Supports multiple speed-dial memories for emergency numbers.
- Handset manufactured from rugged compound with armoured cord.
- Certified to ATEX, IECEx, EAC and INMETRO standards.
- Compatible with standard analogue PABX systems.
- Remote configuration via DTMF and programmable auto hang‑up timer.
Specifications
- Power source: drawn from telephone line.
- Operating voltage: 24–65 VDC.
- Operating current: 20–100 mA DC.
- Ringer operating voltage: 48–90 VAC (21–54 Hz).
- Ringing volume: about 80 dB(A) at 1 m.
- Dialling method: PD or DTMF, in line with ITU‑T Q.23.
- Lightning protection: ITU‑T K.21 enhanced levels.
- Operating temperature: −40 °C to +65 °C; storage −40 °C to +75 °C.
- Wiring access: 3 × M20 cable gland entries.
- MTBF: exceeds 50,000 hours under normal conditions.
