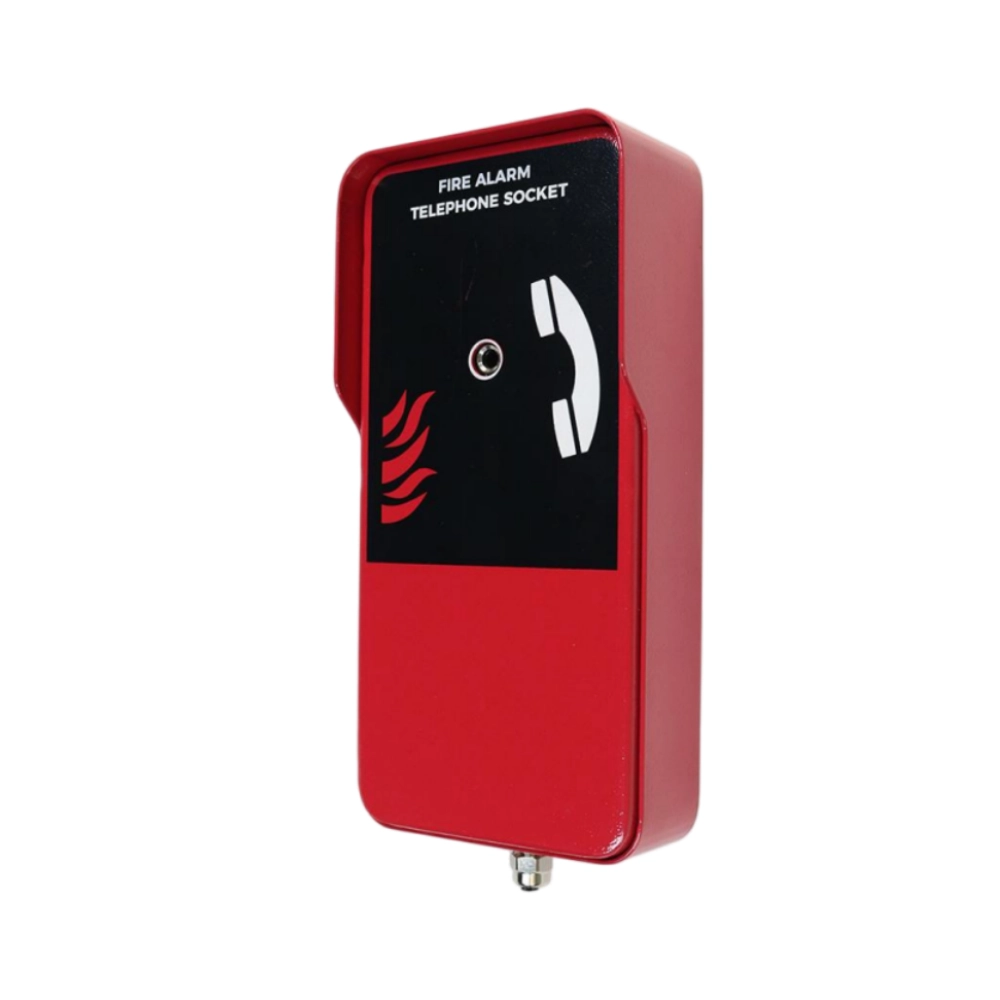

JS-OS Jack Socket Refuge Unit
AED 1,258.24 VAT included
Jack-socket refuge outstation for plug-in handset operation, suitable for disabled refuge and fire telephone systems.
Description
The JS-OS jack socket refuge unit provides an emergency communications point where a portable handset can be plugged in for outgoing calls. Based on a 304 stainless steel front plate with IP54 protection, the unit includes noise‑reduction technology for clear audio and supports full‑duplex communication when used with the matching handset. It is designed for use in disabled refuges, fire escape routes and similar safety-critical locations.
The outstation operates from a 24 VDC supply and forms part of the same monitored radial bus as HF‑OS and TS‑OS/R units. Local addressing is set using a rotary switch, simplifying commissioning and maintenance.
Features
- 304 stainless steel housing with corrosion-resistant hardware.
- IP54 protection with option to upgrade to IP65.
- Accepts a plug-in handset that auto-dials the control panel for outgoing calls.
- Supports Hearing Aid Compatibility (HAC) with the associated handset.
- Provides a full‑duplex, fault‑monitored voice link when in use.
- 24 VDC extra‑low‑voltage operation for safety.
- Designed specifically for fire-safety and disabled-refuge intercom systems.
- Wall-mounted for easy installation along escape routes.
Specifications
- Operating voltage: 24 VDC.
- Ringing volume: 85 dB(A) at 1 m.
- Dialling method: PD or DTMF (menu-selectable).
- Surge and transient immunity to ITU‑T K.21 enhanced levels.
- Operating temperature: −40 °C to +65 °C.
- Storage temperature: −40 °C to +75 °C.
- Unit size: 230 × 110 × 54.2 mm.
- Address selection via rotary switch on the rear.
