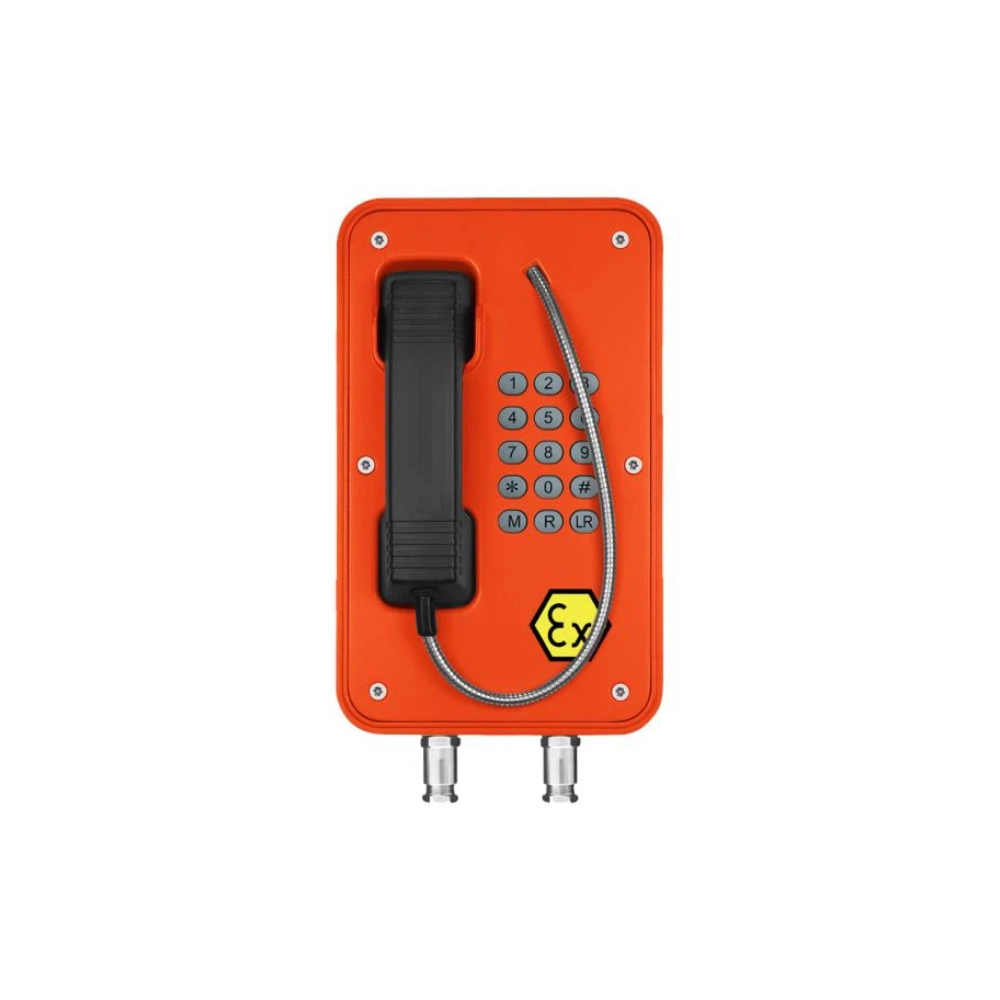

JREX106-A03 Analogue Explosion-proof Telephone
AED 2,840.81 VAT included
Analogue explosion-proof telephone in aluminium IP66 housing for hazardous areas.
Description
The JREX106-A03 AL is an analogue explosion-proof telephone designed for reliable voice communication in hostile environments. Its aluminium die-cast enclosure provides IP66 protection against dust and water, while the heavy-duty handset and armoured cord withstand mechanical abuse and industrial contaminants. Advanced noise‑reduction processing improves speech clarity in noisy locations.
Features
- Aluminium alloy die‑cast body rated to IP66.
- Advanced noise‑reduction technology for clearer analogue calls.
- Supports multiple speed-dial memories for emergency numbers.
- Compatible with standard analogue PABX systems.
- Rugged handset manufactured from durable compound with armoured cord.
- Certified to ATEX, IECEx, EAC and INMETRO.
Specifications
- Power source: drawn from telephone line.
- Operating voltage: 24–65 VDC.
- Operating current: 20–100 mA DC.
- Ringer operating voltage: 48–90 VAC (21–54 Hz).
- Ringing volume: about 80 dB(A) at 1 m.
- Dialling method: PD or DTMF, in line with ITU‑T Q.23.
- Lightning protection: ITU‑T K.21 enhanced levels.
- Operating temperature: −40 °C to +65 °C; storage −40 °C to +75 °C.
- Wiring access: 3 × M20 cable gland entries.
- MTBF: exceeds 50,000 hours under normal conditions.
