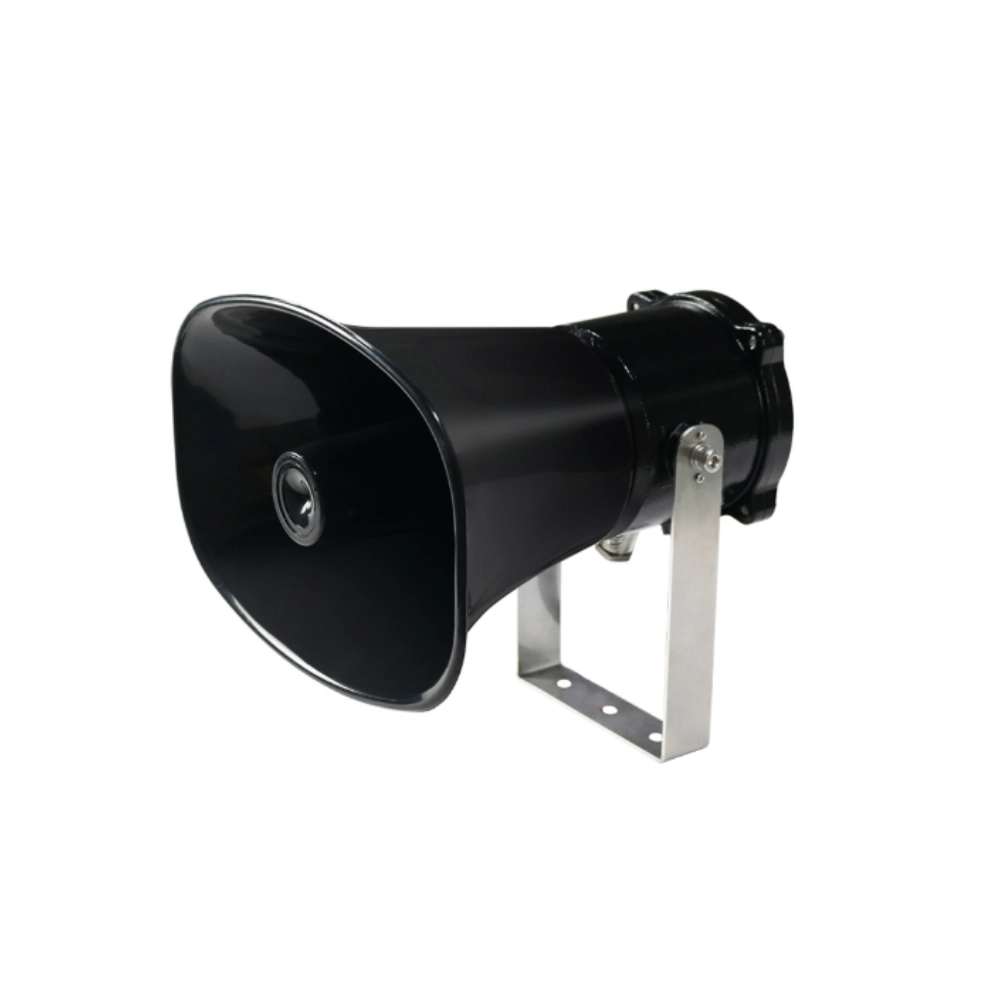

JREX-HSA-P 25 W SIP Explosion-proof Loudspeaker
AED 2,538.84 VAT included
25 W SIP/PoE explosion-proof horn loudspeaker for voice paging and alarms in hazardous areas.
Description
The JREX-HSA-P is the SIP-powered member of the JREX-HSA explosion-proof loudspeaker family. Using PoE or 12 V DC power, it integrates directly with IP-based paging and intercom systems to provide 25 W of audio output in hazardous zones. The stainless steel horn enclosure delivers IP66 environmental protection and high sound pressure levels for noisy industrial sites.
Designed for use in petrochemical plants, refineries, offshore platforms and similar environments, the unit offers low sound attenuation over distance and a large safety margin for explosive atmospheres.
Features
- Explosion-proof horn loudspeaker for hazardous areas.
- Stainless steel housing with IP66 ingress protection.
- Certified for explosive gas and dust atmospheres (IIC and IIIC groups).
- Wall-mounted design for use with amplifiers, paging and VoIP systems.
- Low attenuation and high mechanical strength for outdoor industrial sites.
- SIP/VoIP variant powered via PoE or DC for direct IP integration.
- 25 W rated output for clear paging and alarm tones.
Specifications
- Explosion protection: Ex db IIC T6/T5 Gb; Ex tb IIIC T80°C/T95°C Db.
- IP rating: IP66.
- Impedance: 8 Ω nominal.
- Effective frequency range: approximately 250 Hz to 3.4 kHz.
- Sound pressure level: typically 95–110 dB.
- Outlet thread: M20 × 1.5.
- Power supply (SIP version): PoE or 12 V DC.
- Rated power: 25 W.
