JREX106-A01 CB_AL Hotline Analogue Explosion-proof Telephone
AED 2,952.65 VAT included

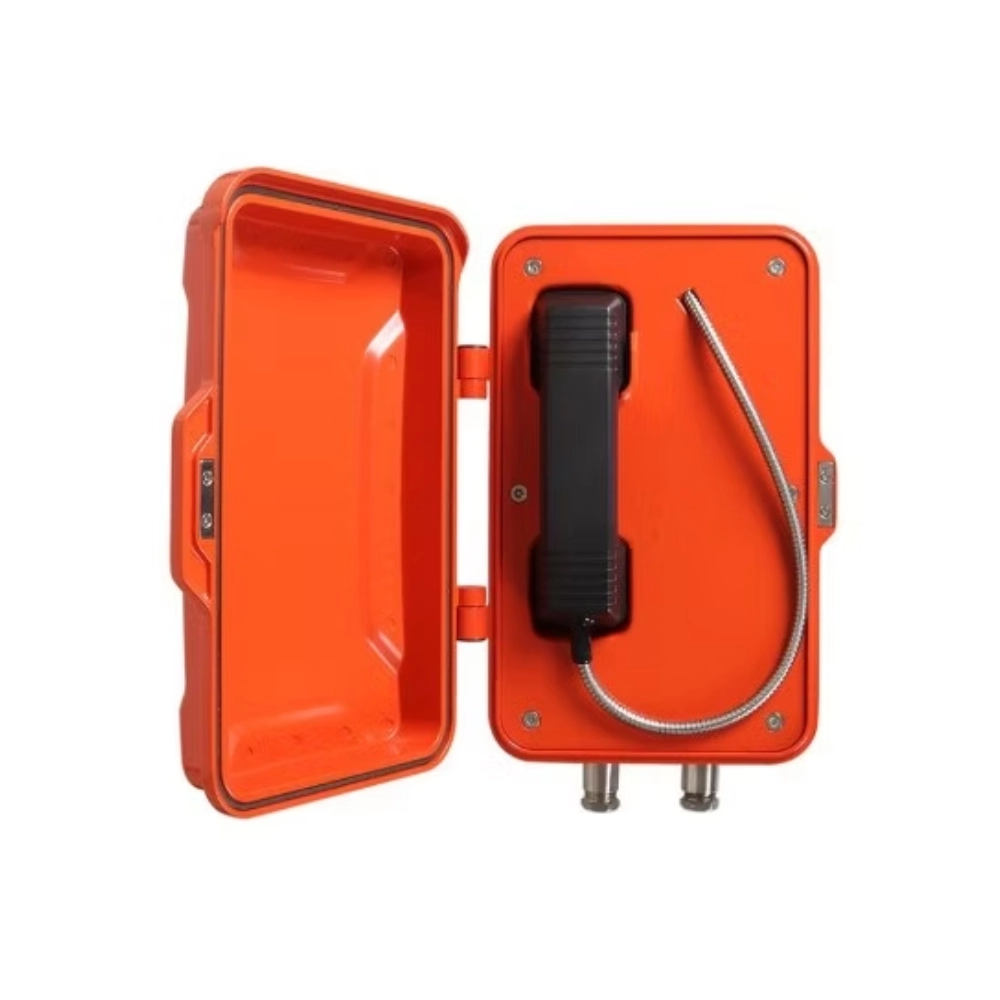

Hotline analogue explosion-proof telephone with door-enclosed aluminium IP66 housing for direct emergency calls in hazardous areas.
Description
The JREX106-A01 CB_AL is a hotline analogue explosion-proof telephone designed for voice communication in hazardous industrial environments. The aluminium alloy die-cast housing with a protective door achieves IP66 ingress protection, shielding the handset and keypad from dust, water jets and mechanical damage. A rugged handset with armoured cord and noise-reduction circuitry provides clear audio even in noisy process areas.
Configured for hotline operation, the telephone automatically dials a pre-programmed destination as soon as the handset is lifted, ensuring rapid connection to the control room or emergency team. The instrument supports additional speed-dial memories, remote configuration via DTMF, an adjustable auto hang-up timer and compatibility with standard analogue PABX systems. Line-powered operation and the option to drive an external beacon or horn from the telephone line simplify installation in remote field locations.
Features
- Aluminium alloy die-cast body with protective door enclosure for IP66 environmental sealing.
- Hotline analogue configuration automatically connects callers to a pre-set destination when off-hook.
- Advanced noise-reduction technology improves intelligibility in high-noise industrial areas.
- Rugged handset manufactured from heavy-duty compound with armoured cord for long service life.
- Supports multiple speed-dial memories for critical emergency and service numbers.
- Compatible with standard analogue PABX lines and emergency call systems.
- Remote configuration via DTMF tones, including hotline parameters and auto hang-up timer.
- Line-powered design eliminates the need for a local power supply in the field.
- Telephone line can power an external beacon or horn mounted on the enclosure.
- Certified explosion-proof construction suitable for petrochemical, offshore and mining facilities.
Specifications
- Power supply: drawn from the analogue telephone line.
- Operating voltage range: 24–65 VDC.
- Operating current: typically 20–100 mA DC.
- Ringer operating voltage: 48–90 VAC at 21–54 Hz calling frequency.
- Ringing volume: approximately 80 dB(A) at 1 m.
- Dialling method: pulse (PD) or DTMF selectable via the configuration menu in accordance with ITU-T Q.23.
- Lightning and transient protection meets ITU-T K.21 enhanced levels.
- Wiring access provided by three M20 cable-gland entry points.
- Operating temperature: −40 °C to +65 °C; storage temperature: −40 °C to +75 °C.
- MTBF exceeds 50,000 hours under normal operating conditions.
