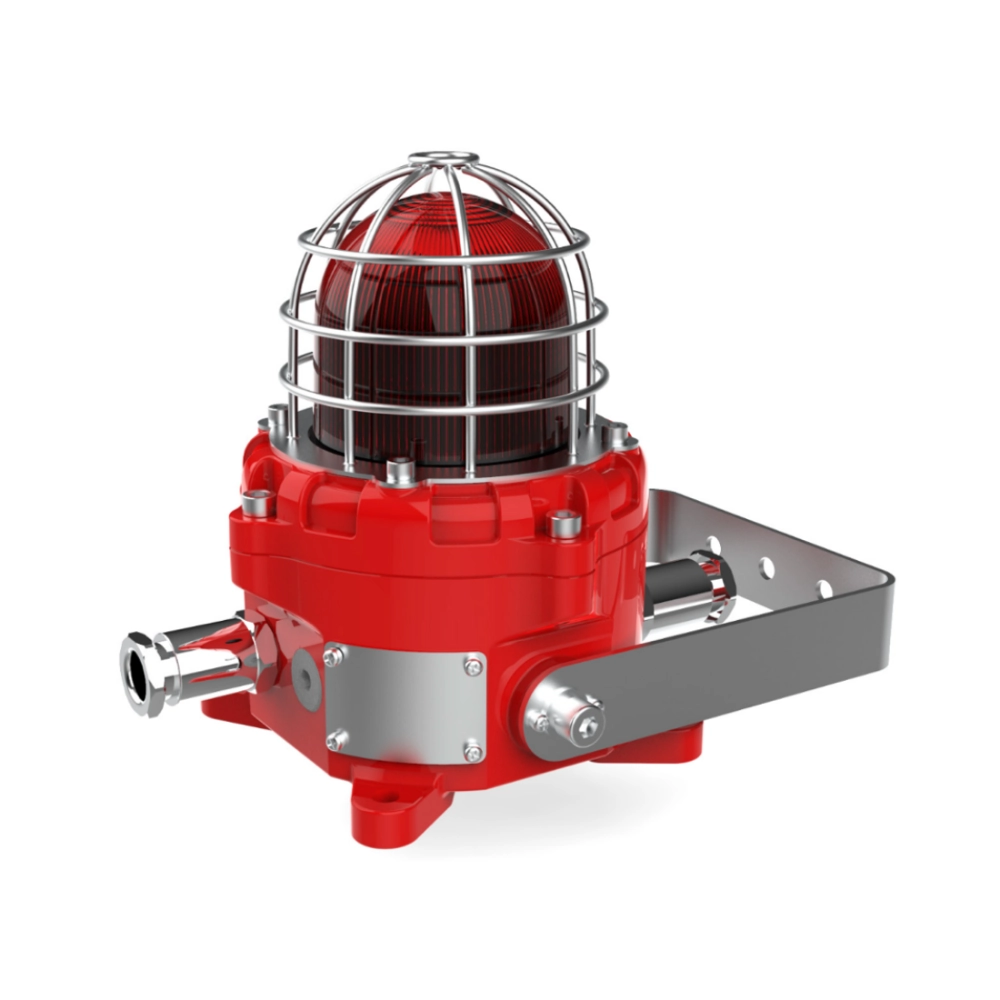

JREX-WL 01 Explosion-proof Beacon/Light
AED 1,761.52 VAT included
Explosion-proof LED beacon for visual warning in hazardous zones, ideal as an auxiliary signal with EX telephones, gas detectors and alarm systems.
Description
The JREX-WL 01 explosion-proof beacon provides high-visibility LED warning for gas and dust hazardous areas. It is typically used as a visual indicator with explosion-proof telephones, gas detection systems and general alarm devices, and can also serve as an aviation obstruction or status light. Multiple operating modes are available, including steady, flashing, rotating and xenon-style strobe output.
An ABS lamp cover and aluminium or stainless-steel housing provide strong resistance to corrosion, impact and high temperatures, while IP66 ingress protection allows use in harsh outdoor or wash-down environments. A built-in light sensor enables automatic operation according to ambient light level, and the modular design simplifies on-site installation and replacement of the lamp head.
Features
- Explosion-proof LED beacon for hazardous gas and dust locations.
- Designed as an auxiliary signal for EX telephone, gas detection and alarm systems.
- Can be used as a public warning or aviation obstruction light.
- Multiple operating modes: steady, flashing, rotating and xenon strobe patterns.
- ABS lamp cover offers high impact strength and corrosion resistance.
- Aluminium alloy or stainless-steel body withstands strong mechanical shocks.
- IP66 protection for outdoor and wash-down environments.
- Integrated light sensor switch with adjustable light threshold level.
- Modular structure with easily replaceable lamp head.
- Suitable for petrochemical plants, power stations, ports, marine and offshore sites.
Specifications
- Operating voltage: DC 12 V.
- Power frequency: 50–60 Hz.
- Power consumption: approximately 10 W.
- Light source options: LED rotating, LED flashing or xenon strobe.
- Typical LED flash rates: around 60–120 flashes per minute depending on mode.
- Available xenon energies: 5 J, 10 J, 15 J and 20 J versions.
- Approximate enclosure dimensions: 149 × 149 × 188.35 mm (H × W × D).
- Ingress protection rating: IP66.
- Operating temperature range: −30 °C to +70 °C.
- Estimated LED service life: ≥ 60,000 hours.
