HF-OS Hands-Free Disabled Refuge Unit
AED 1,314.15 VAT included
Hands-free disabled-refuge outstation with stainless steel plate, IP54 rating and single emergency call button.
Description

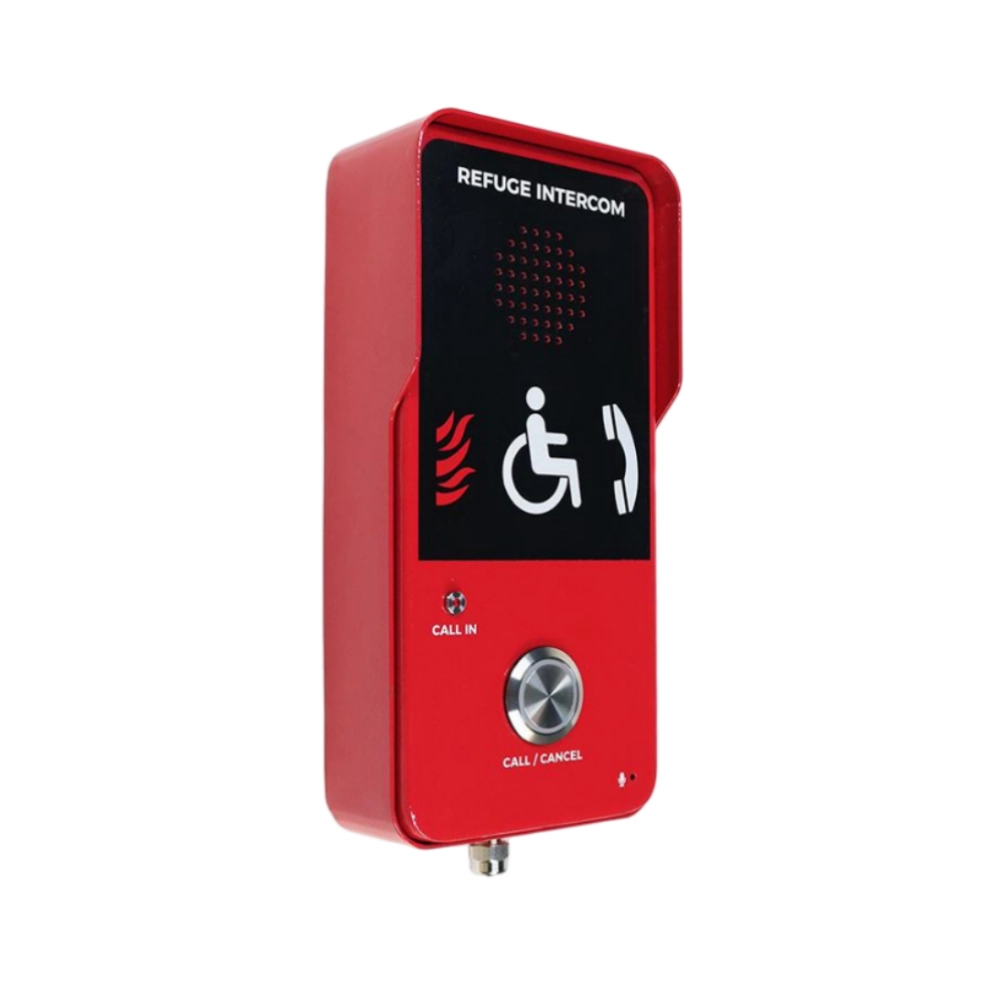

The HF-OS is a hands-free disabled-refuge outstation designed for use with the ETS‑CP/R fire alarm control panel. It features a 304 stainless steel front plate with IP54 ingress protection that can be upgraded to IP65 for harsher environments. Audio quality is enhanced through noise‑reduction processing, a noise-cancelling microphone and a built‑in 2 W loudspeaker, providing clear full‑duplex communication during emergencies.
Operation is by a single vandal-resistant metal push button, simplifying use for occupants. The unit is powered from a 24 VDC extra‑low‑voltage supply and connects on the monitored radial bus. It is intended for emergency voice communication in stairwells, refuges and other protected escape areas.
Features
- 304 stainless steel faceplate for durability and corrosion resistance.
- IP54 ingress protection with option to upgrade to IP65.
- Hands-free operation via a single vandal-resistant metal call button.
- Noise‑cancelling microphone and built‑in 2 W loudspeaker for clear speech.
- True full‑duplex audio on a fault-monitored voice link.
- Operates from a 24 VDC extra‑low‑voltage supply.
- Optimised for disabled refuge and fire-safety intercom applications.
- Wall-mounted design for easy installation adjacent to refuge points.
Specifications
- Operating voltage: 24 VDC.
- Ringing volume: 85 dB(A) at 1 m.
- Dialling method: PD or DTMF (menu-selectable).
- Lightning and transient protection compliant with ITU‑T K.21 enhanced levels.
- Operating temperature: −40 °C to +65 °C.
- Storage temperature: −40 °C to +75 °C.
- Typical enclosure size: 230 × 110 × 54.2 mm.
- Supplied for wall mounting; wiring via rear enclosure.
