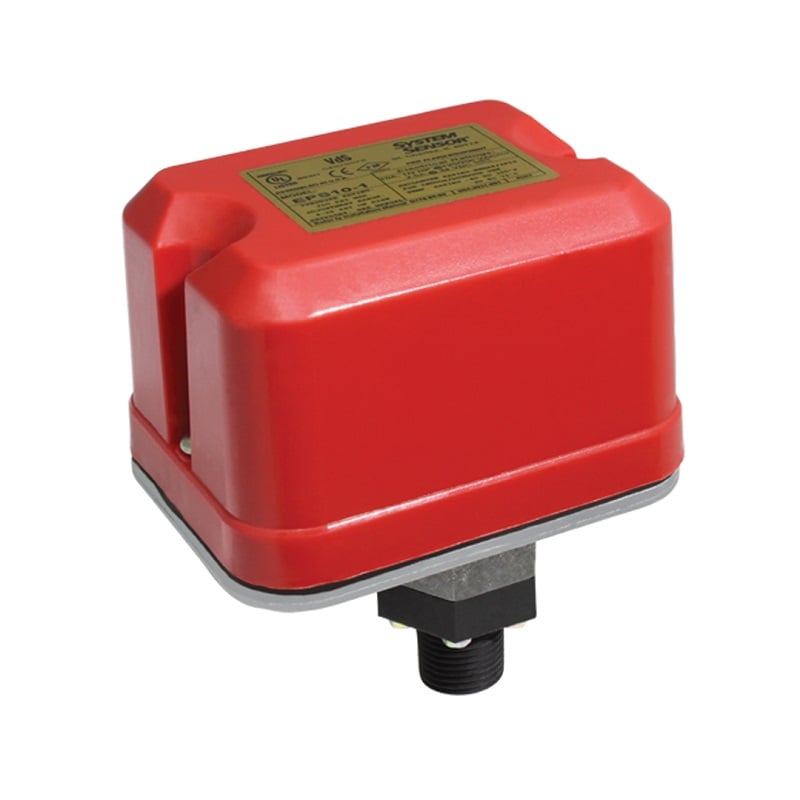

System Sensor EPS10-1 Alarm Pressure Switch, 4 – 20 psi Range, One SPDT Switch for wet, dry, deluge, and pre-action fire sprinkler systems. The EPS10 Series features field adjustable pressure sensitivity to provide an alarm response between 4 and 20 psi. It is factory set to respond at 4 8 psi on rising or falling pressure. The pressure adjustment wheel requires no special tools and is NEMA 4-rated.
Previous product
Back to products
Firelook PT03 Support for Minos Fire Extinguisher 6 kg powder – 6 l foam – 5 kg Co2
AED 1,286.25 VAT included
Next product
Qlight - SBE EX. Proof Alarm Bells
AED 1,764.00 VAT included
System Sensor EPS10-1 Alarm Pressure Switch, 4 – 20 psi Range, One SPDT Switch
AED 619.50 VAT included
Specifications
- Product: Alarm Pressure Switch
- Brand: System Sensor
- Model: EPS10-1
- Adjustment Pressure Range: 4-20 PSI
- Enclosure Rating: UL NEMA 4
- Pressure Connection: 1/2" NPT male glass reinforced nylon
- Differential: Approx. 3 PSI throughout range
- Factory Setting: Operates at rising pressure 4-8 PSI
- Shipping Weight: 1.2 lbs. (.54 kg)
- UL Pressure Rating: 250 PSI
Features
- Sensitivity adjustment wheel, no special tools required
- Reinforced diaphragm resists pressure spikes
- Both one- and two-switch models available
- Two conduit entrances
