TS-OS/R Telephone Station with Handset
AED 1,453.96 VAT included
Fire emergency telephone outstation with lockable red housing, hotline handset and IP54 protection.
Description

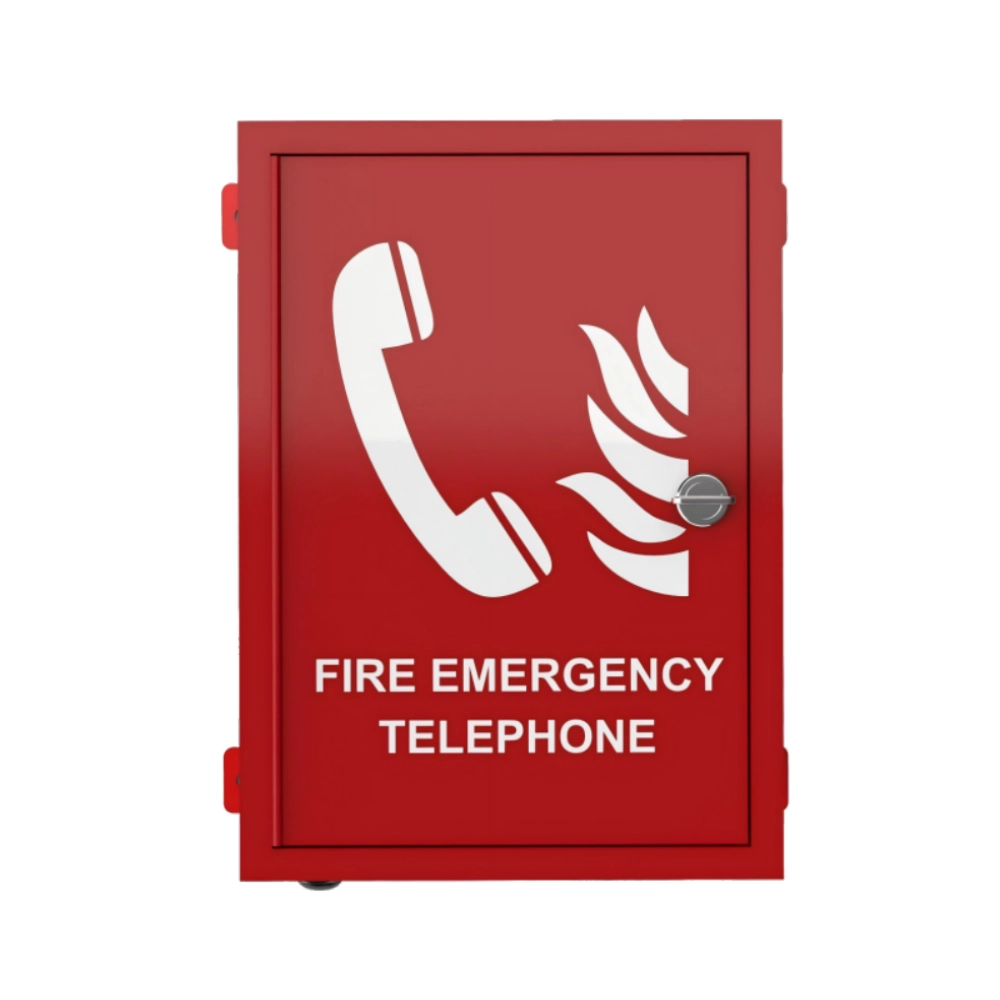

The TS-OS/R telephone station is a fire emergency outstation supplied in a red steel cabinet with a hinged door. A hotline handset automatically dials the control panel when lifted, providing a full‑duplex, fault‑monitored speech path. The enclosure uses 304 stainless steel with an IP54 rating as standard, suitable for protected indoor locations, and can be upgraded to IP65 where additional environmental protection is required.
The unit is powered from a 24 VDC supply and includes a magnetic reed hook switch to minimise moving parts. It is intended for use with the ETS‑CP/R control panel as part of a complete fire and disabled-refuge telephone system.
Features
- 304 stainless steel housing in a red lockable cabinet.
- IP54 ingress protection with optional IP65 upgrade.
- Hotline handset with automatic dialling and answering.
- Magnetic reed hook switch for long mechanical life.
- Hearing-aid compatible handset for assisted users.
- True full‑duplex voice path with fault monitoring.
- Powered from 24 VDC low-voltage supply.
- Designed as part of a specialised fire-safety intercom system.
Specifications
- Operating voltage: 24 VDC.
- Ringing volume: 85 dB(A) at 1 m.
- Dialling method: PD or DTMF (menu-selectable).
- Transient protection to ITU‑T K.21 enhanced levels.
- Operating temperature: −40 °C to +65 °C.
- Storage temperature: −40 °C to +75 °C.
- Cabinet size: 350 × 300 × 131.5 mm.
- Supplied as part of a 27 kg complete system with panel and outstations.
