Description

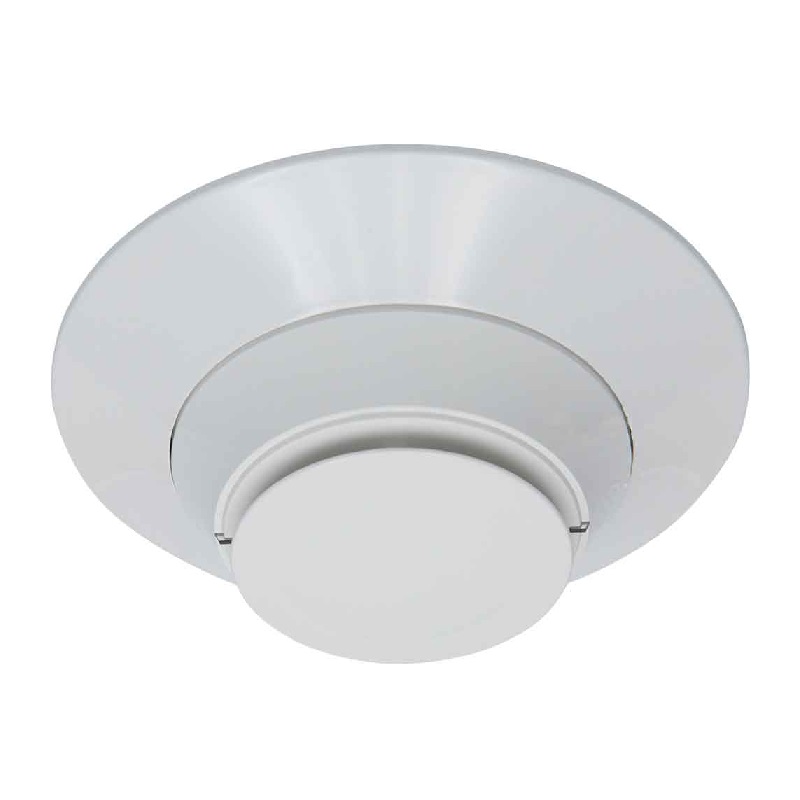

System Sensor 7351 Smoke Sensor with a standard base features a patented smoke sensing chamber, designed to amplify signals from smoke, but diminish stray internal reflections. By using a laser diode instead of a standard LED light source into the sensing chamber, Pinnacle is able to achieve sensitivities from 0.02% to 2% per foot obscuration. The detectors’ extensive software processing includes multi-alert drift compensation, internal self-diagnostics, and superior transient signal rejection algorithms to produce unprecedented stability at ultra-high sensitivities, over the complete temperature range. Because Pinnacle is base-compatible with all other 200 Series detectors, system designers can seamlessly mix it with other standard detection technologies thereby reducing overall cost.
Features
- Ultra-high-sensitivity capability
- Transient rejection algorithms
- On-board drift compensation
- Sleek, low-profile design
- Analog communications
- Rotary address switches
- Superior EMI protection
- Environmental tracking
- Wide sensitivity range
- Low standby current
Specifications
- Product: Photoelectric Smoke Sensor
- Brand: System Sensor
- Model: 7351
- Operating Voltage Range: 15 to 32 VDC
- Operating Current @ 24 VDC: 300 uA (one communication every 5 seconds with green LED blink on communication)
- Maximum Alarm Current: 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on)
- Maximum Current: 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on)
- Height: 2.0˝ (51 mm) installed in B300-6 Base
- Diameter: 6.2˝ (156 mm) installed in B300-6 Base; 4.1˝ (104 mm) installed in B501 Base
- Weight: 3.4 oz. (95 g)
