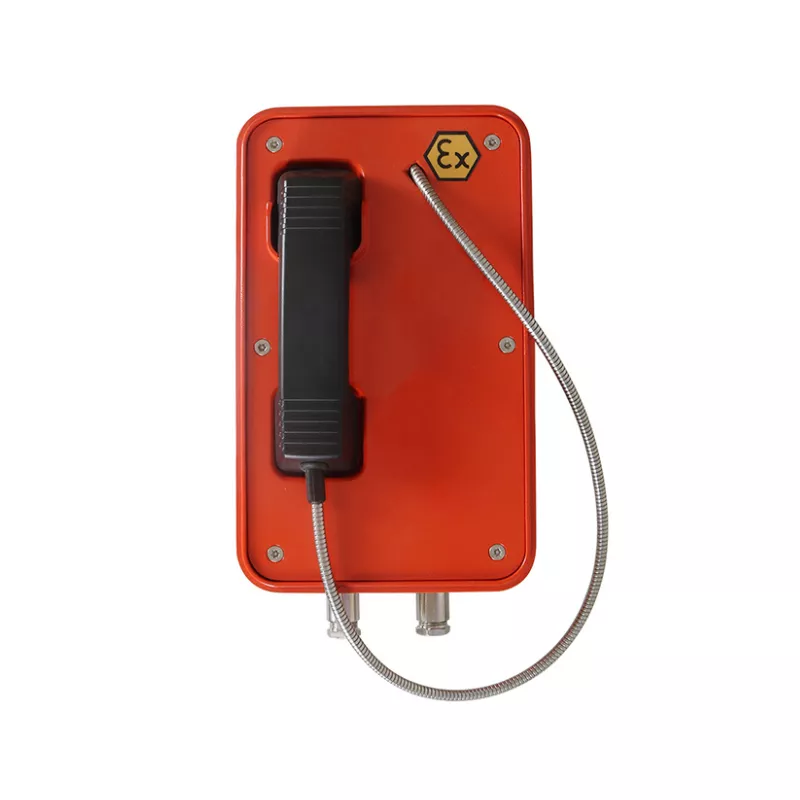

JREX106-A03 CB AL Hotline Analogue Explosion-proof Telephone
AED 2,728.96 VAT included
Hotline analogue explosion-proof telephone in an IP66 aluminium enclosure for direct emergency calls in hazardous industrial areas.
Description
The JREX106-A03 CB AL is a hotline analogue explosion-proof telephone designed for use in hazardous locations where fast, reliable voice communication with a control room is essential. Its aluminium alloy die-cast body provides IP66 protection against dust, water and corrosive atmospheres, while a robust handset with armoured cord withstands heavy industrial use.
The unit supports automatic hotline operation, dialling a pre-programmed destination as soon as the handset is lifted, and offers multiple speed-dial memories for additional emergency or maintenance contacts. Advanced noise-reduction technology improves speech clarity in noisy environments, and the instrument interfaces directly with standard analogue PABX systems. Remote configuration via DTMF, a programmable auto hang-up timer and the ability to power an external beacon or horn from the line make it easy to deploy in plant-wide emergency communication networks.
Features
- Aluminium alloy die-cast enclosure with IP66 ingress protection.
- Designed specifically for voice communication in hostile and hazardous environments.
- Hotline operation automatically connects callers to a pre-set destination when off-hook.
- Advanced noise-reduction technology enhances call clarity in high-noise areas.
- Supports up to 10 groups of speed-dial numbers for emergency or service contacts.
- Robust handset manufactured from heavy-duty compound with armoured cord.
- Compatible with standard analogue PABX systems and emergency call networks.
- Remote programming via DTMF tones and keypad, including auto hang-up timer.
- Telephone line can power an external warning beacon or sounder mounted on top.
- Certified explosion-proof construction suitable for petrochemical, offshore and mining sites.
Specifications
- Power supply: drawn from the analogue telephone line.
- Operating voltage range: 24–65 VDC.
- Operating current: typically 20–100 mA DC.
- Ringer operating voltage: 48–90 VAC with calling frequency 21–54 Hz.
- Ringing volume: approximately 80 dB(A) at 1 m.
- Dialling method: pulse (PD) or DTMF selectable via the menu, in accordance with ITU-T Q.23.
- Lightning and transient protection: meets ITU-T K.21 enhanced levels.
- Wiring access provided by three M20 cable-gland entry points.
- Operating temperature: −40 °C to +65 °C; storage temperature: −40 °C to +75 °C.
- MTBF: exceeds 50,000 hours under normal operating conditions.
