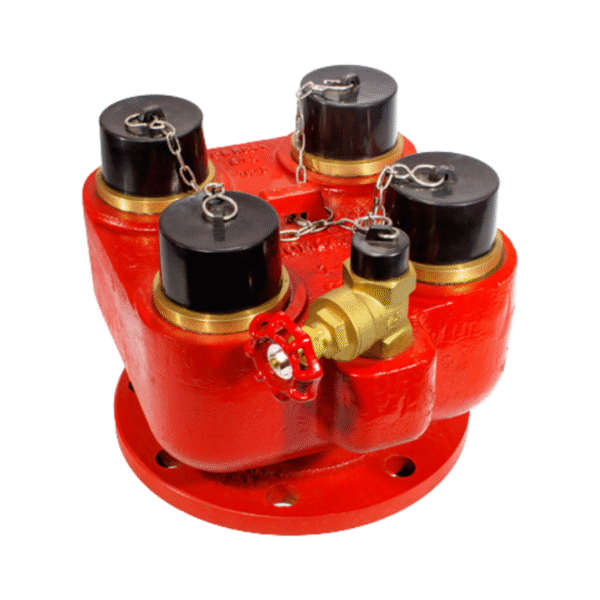

SHIELD Breeching Inlet 4-Way 6″ NWR115
AED 1,443.75 VAT included
6″ 4-way breeching inlet for fire department connections, with 65mm instantaneous female couplings. BS 5041-3 certified.
In stock
Product Code : fs0507665
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD NWR115 4-way breeching inlet features a ductile iron body with four 65mm instantaneous female inlets and one 6″ outlet. Includes brass clappers, rubber seals, and protective caps. Designed for wet riser systems with 16 bar working pressure.
Features
- Four 65mm instantaneous female inlets
- 6" outlet flange (PN16)
- Brass clapper valves
- Rubber-sealed protective caps
- BS 5041-3 certified
- 16 bar working pressure
- Epoxy coated (250µm)
- Wall-mounted bracket included
- Tested to 25 bar
Specifications
- Inlet Size: 4×65mm Female
- Outlet Size: 6" Flange (DN150)
- Body Material: Ductile Iron (EN-GJS-450)
- Clapper Material: Brass (CW614N)
- Seals: EPDM
- Pressure Rating: 16 bar
- Flange Standard: EN 1092-2 PN16
- Coating: Epoxy (RAL 3000)
- Standards: BS 5041-3, EN 14384
- Weight: 48kg
