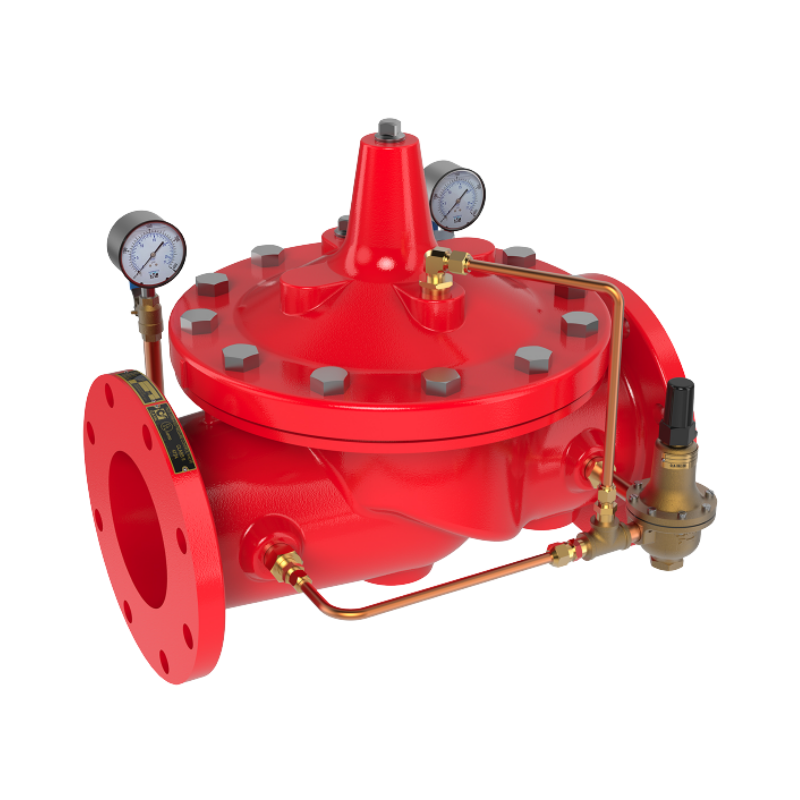

CLA-VAL 90G-21 Pressure Reducing Valve Flanged Ends – 6″
AED 8,568.00 VAT included
6″ flanged pressure reducing valve for water systems, adjustable 25-150 PSI, with stainless steel trim and cast iron body.
In stock
Product Code : fs0507655
Brand: CLA-VAL
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The CLA-VAL 6″ pressure reducing valve maintains constant downstream pressure in water distribution systems. Features pilot-operated control, flanged connections, and adjustable pressure range (25-150 PSI). Suitable for municipal and industrial applications.
Features
- Pilot-operated precision control
- Flanged ends (ANSI 125/250)
- Stainless steel trim (SS316)
- Adjustable pressure setting
- Internal strainer
- Fail-close operation
- Epoxy-coated exterior
- Field-serviceable
- Low maintenance
Specifications
- Size: 6" (150mm)
- Connections: ANSI 125/250 flanges
- Pressure Range: 25-150 PSI (1.7-10.3 bar)
- Max Inlet Pressure: 300 PSI
- Flow Capacity: 1,800 GPM @ 50 PSI
- Body Material: Ductile Iron (80-55-06)
- Trim Material: SS316
- Seat Material: EPDM/Nitrile
- Standards: AWWA C550, NSF/ANSI 61
- Weight: 98kg
