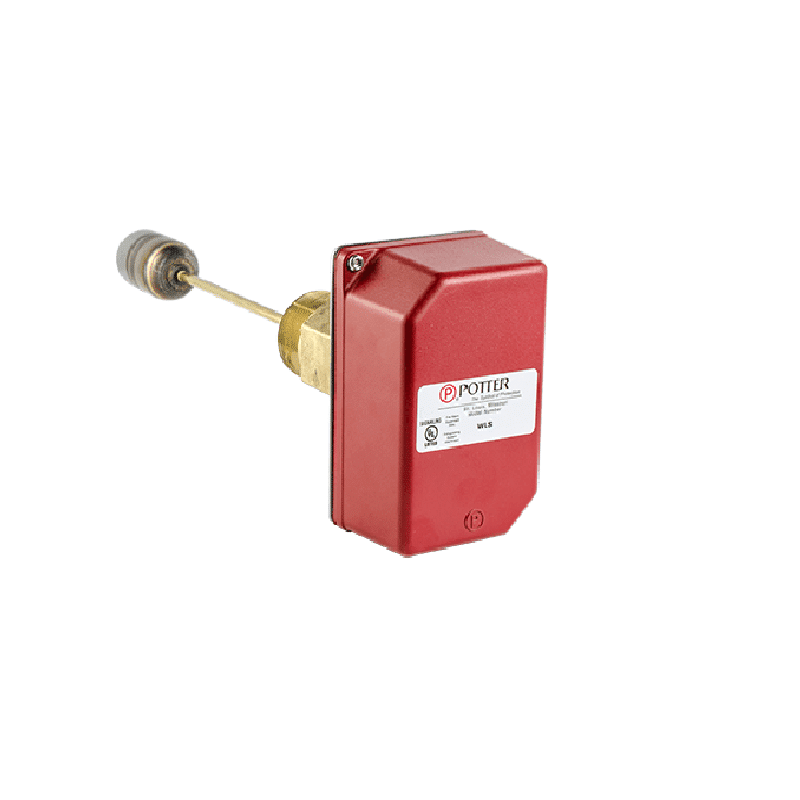

Potter WLS Tank Water Level Switch
See all products from potter
AED 3,360.00 VAT included
Potter WLS Tank Water Level Switch is a float operated device for supervising water level in a sprinkler supply gravity or pressure tank. The Model WLS has a bushing with 1 1/2 Inch American Standard Pipe Threads for mounting in steel tanks. A 1 1/2 Inch x 2 Inch adapter bushing is available for mounting in existing 2 Inch steel flanges. An optional bushing adapter with a buttress thread is available for mounting in wooden tanks
Product Code : fs10101
Seller: Fireshop1001
Approved by :
-
free delivery
Above AED1000 in UAE
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Potter WLS Tank Water Level Switch is a float operated device for supervising water level in a sprinkler supply gravity or pressure tank.
The Model WLS has a bushing with 1 1/2 Inch American Standard Pipe Threads for mounting in steel tanks. A 1 1/2 Inch x 2 Inch adapter bushing is available for mounting in existing 2 Inch steel flanges. An optional bushing adapter with a buttress thread is available for mounting in wooden tanks.
The unit is capable of detecting the level of water before a 3 Inch (7,6cm) rise and/or a 3 Inch (7,6cm) fall in the water level in a pressure tank, as required. The cover is held in place with two tamper resistant screws (provided), which require a special key for removal.
Features
- Suitable for use on pressure or gravity switches
- Mounts to wood or steel tanks
- Product includes a 5 year warranty
- NEMA 4
Specifications
- Product: Tank Water Level Switch
- Brand: Potter
- Dimensions: Housing - 5.56H x 3.50W x 2.56D 14,1cm H x 8,9cm W x 6,5cm
- Detection Range: Before 3 (7,6cm) Rise /Before 3 (7,6cm) Fall
- Maximum Pressure: 175 PSI (12,1 BAR)
- Enclosure: Cover - Cast aluminum with red powder coat finish, Base - Steel zinc plated
- Contacts: Two sets SPDT (Form C), One set for high / One set for low Rated - 15.00 Amps at 125/250VAC, 0.50 Amp at 125VDC, 0.25 Amp at 250VDC
- Cover Tamper: Cover incorporates tamper resistant fasteners that requires a special key for removal. One key is supplied with each device
- Environmental Specifications: Suitable for indoor or outdoor use, Temperature range: 40°F to 140°F (4,5°C to 60°C), NEMA 4 rated enclosure - when used with proper conduit fittings
- Applications: Steel or wood tanks (With the optional wood bushing adapter, Stock No. 5180199)
- Weight: 3.25 lb / 1.47 Kg
