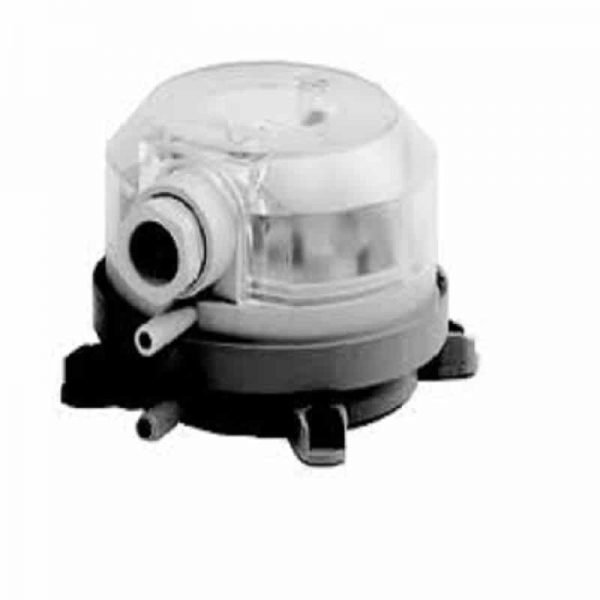

Honeywell DPS400 Series Differential Pressure Switches
AED 614.25 VAT included
Honeywell DPS400 Series Differential Pressure Switches are mostly used for monitoring filter, fan, fire damper, or air flow status of air handling systems. Switching-point easily adjustable with scale in Pascal, Direction of M20x1.5 conduit entry can be rotated in steps of 120°. Only one screw needed for housing cover.
Product Code : fs108212
Brand: Honeywell
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: DPS Differential Pressure Switch
- Brand: Honeywell
- Max. operating pressure: 10 kPa
- Membrane material: silicone
- Pressure media: air, non-flammable gases, and non-aggressive gases
- Pressure connections: two plastic tubes, outside diameter: 6.0 mm
- Switching capacity: 1.5 A, (0.4) /250 Vac
- Electrical connections: AMP connectors, 6.3 x 0.8, DIN 46244 or screw terminals
- Conduit entry: M20x1.5
- Protection class: IP 54
- Mounting lugs: integrated in bottom housing (alternative: mounting angles)
Features
- Switching-point easily adjustable with scale in Pascal
- Direction of M20x1.5 conduit entry can be rotated in steps of 120°
- Only one screw needed for housing cover
- CE approval according to low-voltage directive 2006/95/EC
- Switch according to VDE 0630
- EC Gas Appliance Directive 90/396/EEC according to DIN EN 1854 (Nov. 01, 1997)
- ROHS 2002/95/EC
