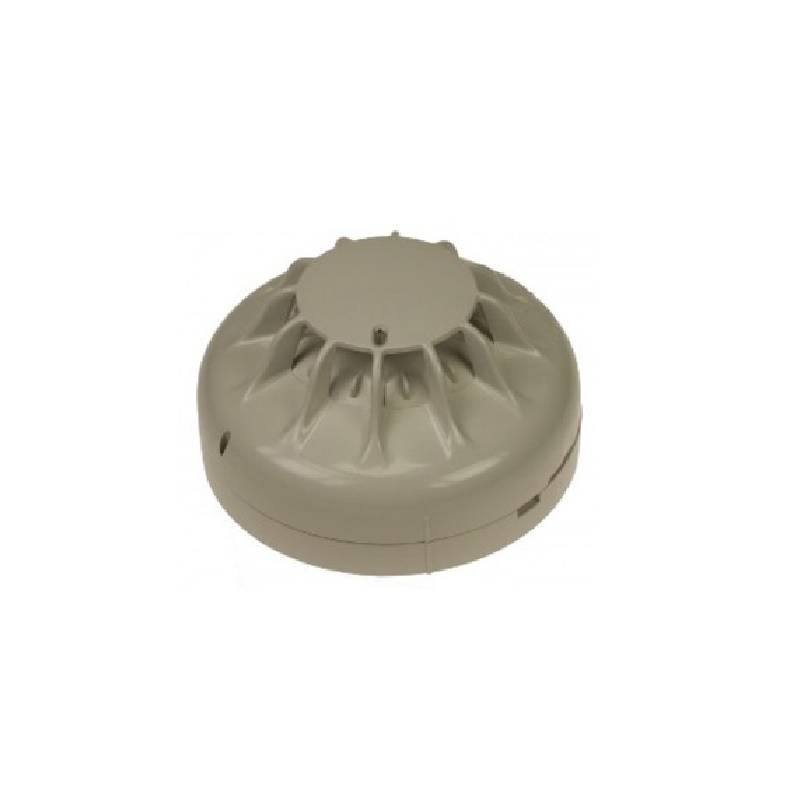

FireClass 601H-R Conventional Heat Detector
See all products from fireclassAED 58.77 VAT included
FireClass 601H-R Conventional Heat Detector, where two negative temperature coefficient thermistors are used, one is exposed to the air whilst, the other is thermally lagged inside the detector body. If the temperature of the air around the detector rises quickly a temperature difference will be established between the two thermistors.
Product Code : fs0502052
Brand: Fireclass
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
FireClass 601H-R Conventional Heat Detector, where two negative temperature coefficient thermistors are used, one is exposed to the air whilst, the other is thermally lagged inside the detector body. If the temperature of the air around the detector rises quickly a temperature difference will be established between the two thermistors. If a particular rate of change of temperature is sustained for sufficient time the detector will notify the alarm. If the rate of temperature increase is very slow, then the temperatures of the two thermistors will be more nearly equal. Under these conditions the detector will notify the alarm condition when the predetermined fixed temperature is reached.
Features
- Low profile, discreet and unobtrusive
- Superior performance and reliability
- Designed for fast, easy installation
- Integral and remote alarm LED
- Series of product approvals
Specifications
- Product: Heat Detector
- Brand: Fireclass
- Model: 601H-R
- Operating Voltage: 10.5v - 33v
- Quiescent Current (typ): 65 micro Amps
- Maximum Current in Alarm 40 mA
- Maximum Humidity: 95% RH - Non Condensing (at 40 C)
- Ingress Protection Rating: IP63
- Size HxD: 43x109 mm
- Weight: 0.093kg
