Tyco CIM800 Addressable Contact Input Module supervises two circuits of voltage-free contacts such as outputs from extinguishing systems, ventilation controls, fire door controls, sprinkler flow switches, non-indicating detectors, etc. The LED illuminates when any input goes into alarm, and can also be programmed to blink when polled by the Tyco MX Control and Indicating Equipment (CIE.).
Previous product
Back to products
Mircom MS-710APU Advanced Protocol Intelligent Manual Station
AED 682.50 VAT included
Next product
Mekasentron RX500 Triple Infrared (IR3) Flame Detector
AED 6,090.00 VAT included

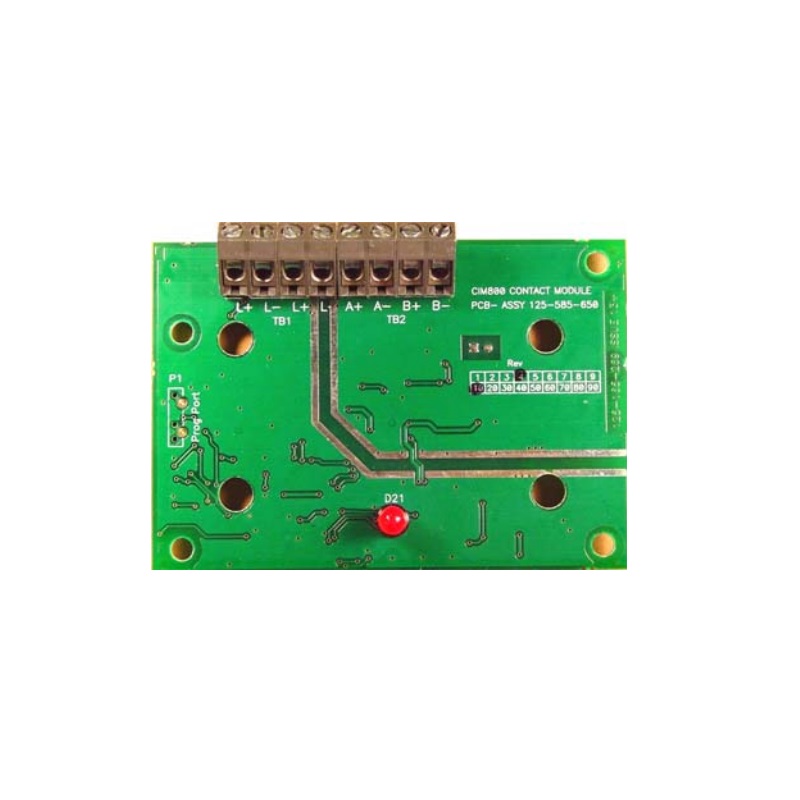

Tyco CIM800 Addressable Contact Input Module
AED 656.25 VAT included
Specifications
- Product: Contact Input Module
- Brand: Tyco
- Model: CIM800
- Loop Voltage: 20V to 40Vdc
- Quiescent Current: 275µA
- Alarm State Current: 2.8mA
- Circuit Resistance: 10 Ohm
- Dimensions (HWD): 61 x 84 x 25 mm
- Wire Size (maximum): 2.5sq. mm
Features
- When two Class B spur circuits are connected, each must be of the same style. A monitored contact going to the active state, on either spur circuit, will cause the CIM800 to report the Active State back to the MX controller.
- Identifies all monitored contacts and signals to the Fire Controller, the status of monitored contacts and wiring to the contacts
- The LED lights when the contact monitored by the CIM800 has switched to the active (off normal) state.
- Can monitor two Class B spur circuits, or a single class Class A loop circuit.
- Can monitor a single normally closed contact
- An LED reports the CIM800 status to the user
