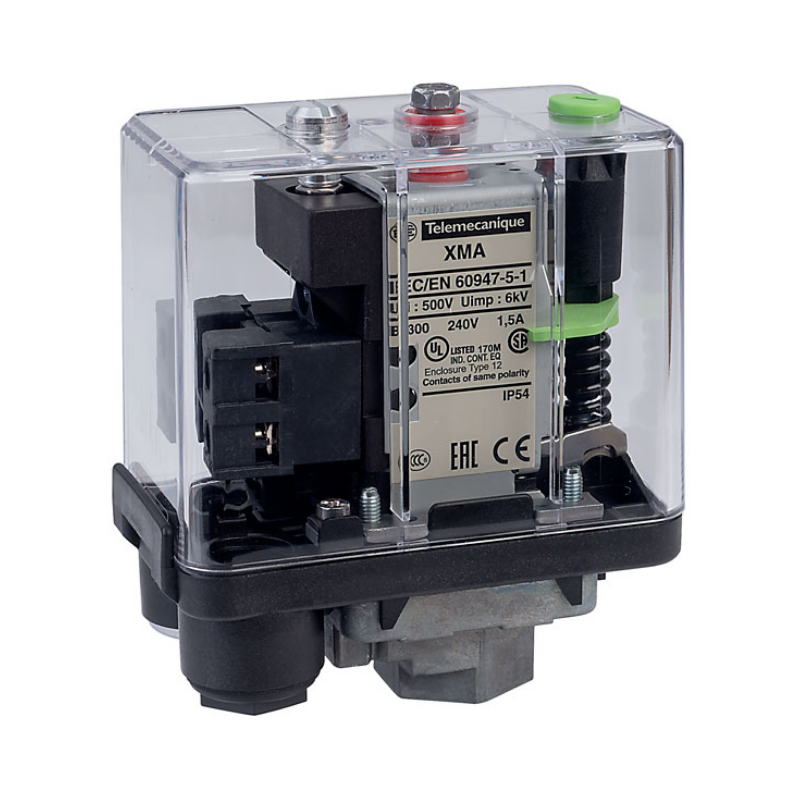

Telemecanique Pressure Switch 12 Bar
AED 147.00 VAT included
Electromechanical pressure switch with a maximum pressure rating of 12 bar, suitable for monitoring air, fresh water, and sea water systems.
In stock
Product Code : fs0507541
Brand: Telemecanique Sensors
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Telemecanique Pressure Switch 12 Bar is designed for reliable pressure monitoring in various fluid systems. Featuring a G 1/4″ female connection and two normally closed (NC) snap-action contacts, it operates effectively within a pressure range of 0.3 to 12 bar. The device is constructed with durable materials, ensuring longevity and consistent performance in demanding environments.
Features
- Electromechanical operation for reliable performance
- Adjustable pressure range up to 12 bar
- G 1/4" female fluid connection conforming to ISO 228
- Two normally closed (NC) snap-action contacts
- Suitable for air, fresh water, and sea water applications within 0–70°C
- Screw-clamp terminals accommodating up to 2 x 4 mm² wires
- IP54 protection rating as per IEC 60529
- Operates in any mounting position
- Vibration resistance up to 3 gn (10–500 Hz)
- Shock resistance up to 50 gn
Specifications
- Pressure Range: 0.3 to 12 bar
- Fluid Connection: G 1/4" female (ISO 228)
- Contact Configuration: 2 NC snap-action contacts
- Electrical Connection: Screw-clamp terminals (max 2 x 4 mm²)
- Cable Entry: 2 x Pg 13.5 plastic cable glands (9–13 mm cable diameter)
- Operating Temperature: 0 to 70°C
- Enclosure Material: PA impregnated with fiberglass
- Fluid-Contact Materials: Canvas-covered nitrile and chromated zinc alloy
- Protection Rating: IP54 (IEC 60529)
- Compliance: CE, IEC 60947-4-1
