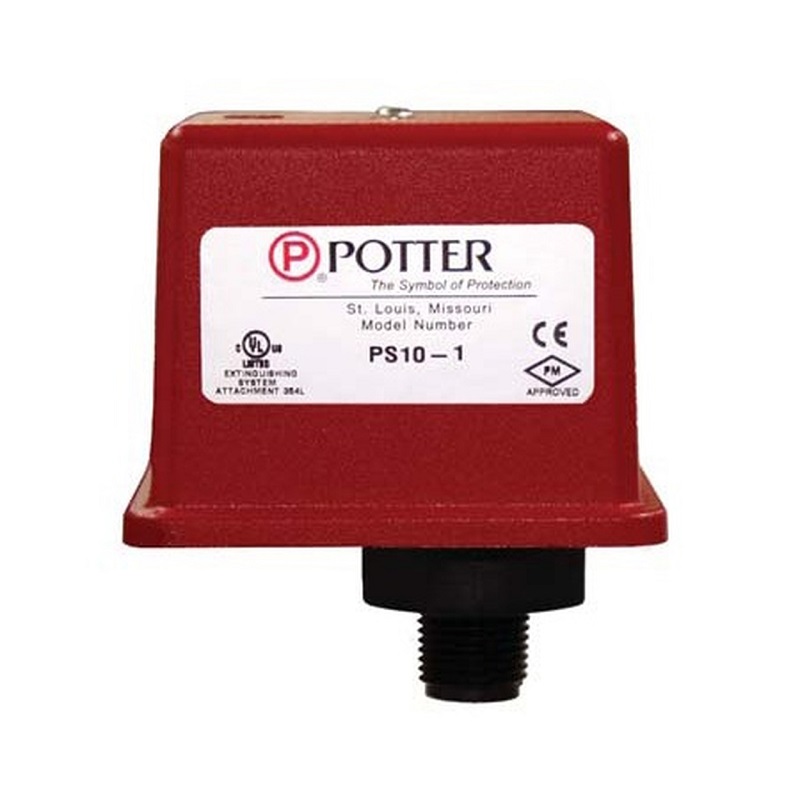

Potter PS10-1 Pressure switch with one set SPDT Contacts
AED 420.00 VAT included
Potter PS10-1 Series Pressure Actuated Switches are designed for the detection of a water flow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves.
Product Code : fs10084
Brand: Potter
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Specifications
- Product: Pressure switch
- Brand: Potter
- Dimensions: 3.78" (9,6cm)W x 3.20" (8,1cm)D x 4.22" (10,7cm)H
- Pressure Connection: Nylon 1/2" NPT Male
- Enclosure: Base – Die-cast, Cover – Die-cast with textured red powder coat finish, single cover screw and rain lip.
- Maximum System Pressure: 300 PSI (20,68 BAR)
- Switch Contacts: SPDT (Form C), 10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC
- Conduit Entrance: Two knockouts provided for 1/2" conduit. Individual switch compartments and ground screws suitable for dissimilar voltages
- Factory Adjustment: 4 - 8 PSI (0,27 - 0,55 BAR)
- Differential: 2 PSI (0,13 BAR) typical
- Environmental Specifications: NEMA 4/IP66 Rated Enclosure - indoor or outdoor when used with NEMA 4 conduit fittings. Temperature range: -40°F to 140°F (-40°C to 60°C)
- UL, cUL, and CSFM Listed, FM and LPC Approved, NYMEA Accepted, CE Marked
Features
- Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems
- The PS10 is also suitable to provide a low pressure supervisory signal; adjustable between 4 and 15 psi
- Device is mounted in the upright position (threaded connection down)
- A wrench is used to tighten the flats on the device
- The tamper resistant screw can b removed with the special key provided.
