Honeywell TC809D1004 Intelligent Relay Control Module is available for Honeywell’s intelligent control panels for a variety of applications. Monitor modules supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations, or monitor and power a circuit of two-wire smoke detectors.
Previous product
Back to products
Pegler 1060 3 Inch Bronze Swing Check Valve PN25(H) (2 x Female Thread)
AED 1,069.69 VAT included
Next product
Yuasa SWL1800 (12V 55Ah) General Purpose VRLA Battery - Capacity at 10-hour Rate (Ah)
AED 876.02 VAT included

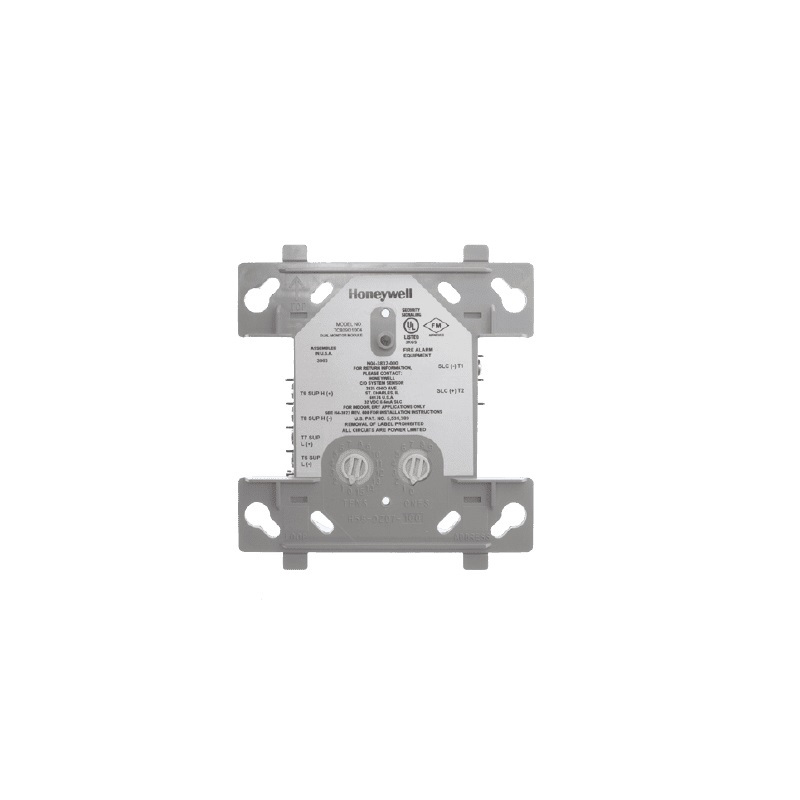

Honeywell TC809D1004 Intelligent Relay Control Module
AED 1,575.00 VAT included
Specifications
- Product: Intelligent Relay Control Module
- Brand: Honeywell
- Model: TC809D1004
- Normal operating voltage range: 15 to 32 VDC
- Average operating current: 750 μA (LED flashing)
- Maximum current draw: 6.4 mA (LED on)
- Maximum IDC wiring resistance: 1,500 ohms
- Maximum IDC Voltage: 11 Volts
- Maximum IDC Current: 240 μA
- EOL resistance: 47K ohms
Features
- Monitor modules supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations
- It provides two independent two-wire initiating device circuits (IDCs) at two separate, consecutive addresses
- It is capable of monitoring normally open contact fire alarm and supervisory devices
- Dual Monitor Module is intended for use in intelligent, two-wire systems
- The module has a single panel-controlled LED
