Description

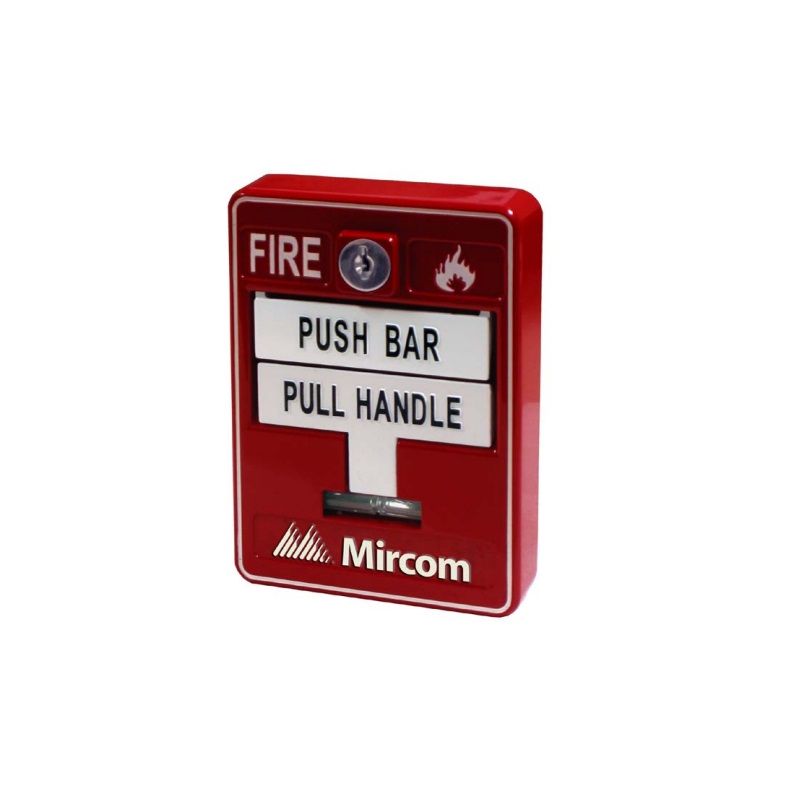

Mircom MS-710APU Advanced Protocol Intelligent Manual Station is made of a high-quality, die-cast metal and is available as a dual-action device with key resets and a permanently attached intelligent module. The intelligent manual station has a pair of rotary decimal switches which allows for two digit address setting. Pulling the handle initiates the operation of the intelligent module.
Features
- Rotary switches for direct-dial entry of address. Each unit can have address set for 01-159 for Advanced Protocol mode and 01-99 for CLIP mode
- Mounts on standard single gang box, Mircom’s BB-700 surface metal backbox or BB-700WP weather proof backbox
- Permanently attached Intelligent Addressable Module
- Meets ADA 5 lb. maximum manual-force
- High-gloss red enamel finish
- Plastic breakrod
- Key resettable
- Dual Action
Specifications
- Product: Advanced Protocol Intelligent Manual Station
- Brand: Mircom
- Model: MS-710APU
- Nominal Operating Voltage: 15–32 VDC
- Maximum Alarm Current @ 24V: 600 μA
- Average Operating Current @ 24V: 400 μA
- Dimensions: 4.93” H x 3.56” W x 2.9” D
