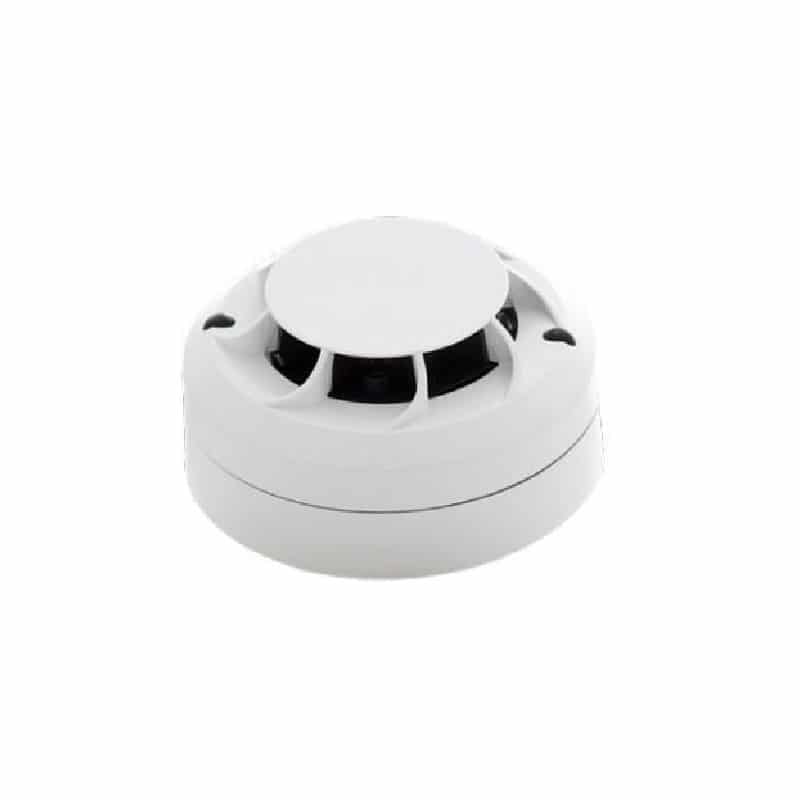

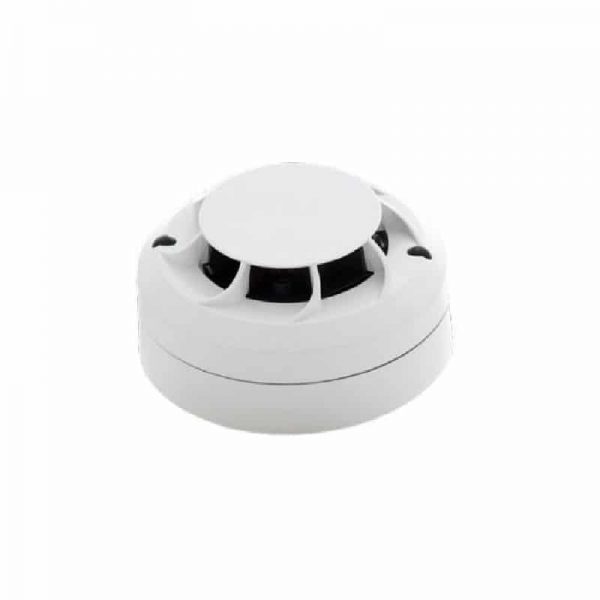

System Sensor 22051E Photoelectric Smoke Detector

Name: System Sensor 22051E Photoelectric Smoke Detector
SKU: fs108602
Price: 307.65 AED
Availability: InStock

See all products from system-sensor

AED 307.65 VAT included

System Sensor 22051E-26 photoelectric smoke detector has a completely new detection chamber design, the result of many years of research and design by System Sensor. This delivers improved responsiveness, reduced sensitivity changes caused by settling the dust and reduced false alarms resulting from insect ingress and other debris. The revolutionary Series 200 Advanced range delivers a totally new detector platform that incorporates the new digital Series 200 Advanced Protocol.

Compare

Product Code : fs108602 Brand: System Sensor Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

System Sensor 22051E photoelectric smoke detector has a completely new detection chamber design, the result of many years of research and design by System Sensor. This delivers improved responsiveness, reduced sensitivity changes caused by settling dust and reduced false alarms resulting from insect ingress and other debris. The plug-in unit uses sophisticated processing circuitry that incorporates smoothing filters to help eliminate transient environmental noise conditions that can be the cause of unwanted alarms. The devices are managed by embedded software running complex algorithms that further improve resilience to false alarms and improve detection speed.

Features

New mechanical platform with revolutionary chamber offering improved false alarm immunity
Improved detection across multiple fire types
Improved resilience to false alarms through dust
Removed risk of false alarms through insects
Includes Series 200 Advanced Protocol
Available with or without single pole short circuit isolation with status control through the series 200 advanced protocol
Tri color LED offering red, green and amber colors
Rotary decade address switches
Pure white color to compliment modern buildings
100% mechanical and electrical backwards compatibility

Specifications

Operating Voltage Range: 15 to 32Vdc
Maximum Standby Current: 200?A at 24VDC (no communications) / 300?A at 24VDC ( LED blink enabled, once every 5s)
Led Current: Red: 3.5mA at 24Vdc, Green: 7.0mA @ 24Vdc, Yellow: 10.5mA @ 24Vdc
Remote Out put Voltage: 22.5Vdc @ 24Vdc
Remote Output Current: 10.8mA @ 24Vdc
Additional loop resistance using the B501AP: typ 20mohm (max 30 mohm)
Temperature Range: -30°C to +70°C
Humidity: 10 to 93% relative Humidity (non-condensing)
Height: 52mm installed in B501 base
Diameter: 102mm installed in B501 base
Weight: 97g (inc base)
Max Wire Gauge for Terminals: 2.5mm2
Colour: White
Material: PC/ABS
Compatible Bases: B500 Series (B501, B501DG, B524RTE, B524HTR, B524IEFT-1), B501AP
