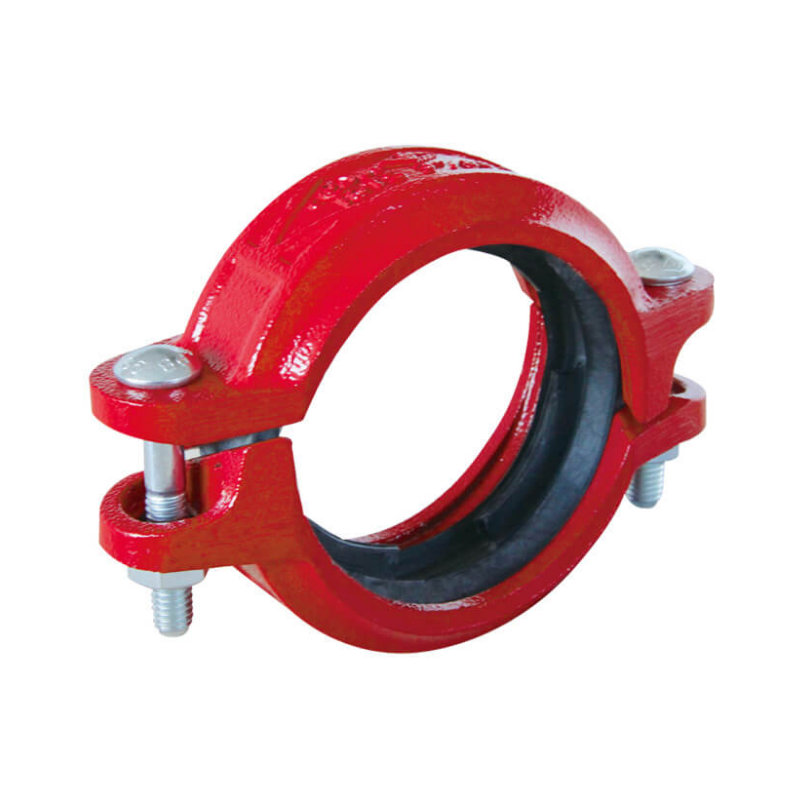

SHIELD SDG-22 Grooved Coupling 2½” SCH40
AED 31.50 VAT included
Rigid grooved coupling designed for 2½” Schedule 40 pipes, ensuring secure and leak-tight connections in fire protection and HVAC systems.
In stock
Product Code : fs0507525
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD SDG-22 Grooved Coupling is engineered to provide rigid joints for 2½” Schedule 40 pipes, preventing linear movement within the pipe assembly. Constructed from high-quality ductile iron and featuring a unique ends-locked design, this coupling ensures a secure and leak-tight connection. Suitable for applications in fire protection, HVAC, and water supply systems, it offers reliable performance under high-pressure conditions.
Features
- Provides rigid joints to prevent linear movement
- Constructed from high-strength ductile iron
- Compatible with 2½" Schedule 40 pipes
- Available in red painted or hot dipped galvanized finishes
- Suitable for fire protection, HVAC, and water supply systems
Specifications
- Material: Ductile Iron (ASTM A536 Grade 65-45-12)
- Finish: Red Painted or Hot Dipped Galvanized
- Gasket: EPDM Rubber C-Shaped Gasket conforming to ASTM D2000-1, Grade A
- Bolts & Nuts: Carbon Steel ISO 898-1 Class 8.8, Heat Treated, Hot Dipped Galvanized
- Max. Working Pressure: 500 psi
- Pipe Size Compatibility: 2½" (73.0 mm)
- Application: Fire Protection, HVAC, Water Supply Systems
- Certifications: UL Listed, FM Approved, LPCB Certified
- Operating Temperature Range: -34°C to +110°C (for EPDM gasket)
- Installation: Mechanical jointing with grooved-end pipes
