Rapidrop Model C Alarm Check Valve 4 Inch
AED 4,830.00 VAT included
Next product
Rapidrop Model C Alarm Check Valve 8 Inch
AED 7,980.00 VAT included
Rapidrop Model C Alarm Check Valve 6 Inch
AED 5,880.00 VAT included
Description

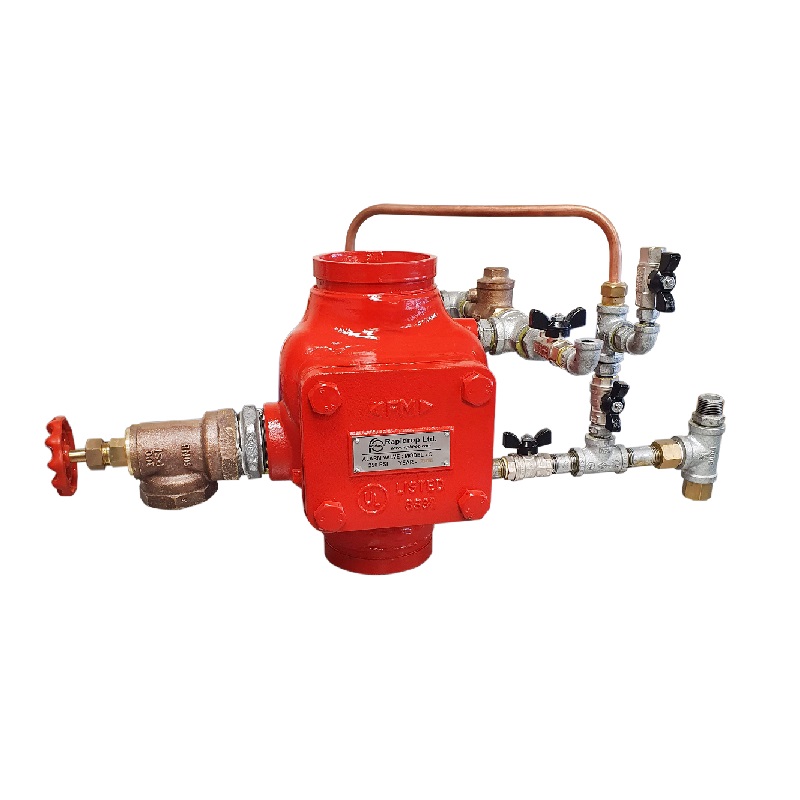

Rapidrop Model C Alarm Check Valve is a double-seated clapper check valve with a grooved seat design that ensures positive water flow for alarm operation and is designed for installation in a wet pipe sprinkler system. External bypass prevents false alarms under all supply pressure conditions. In the event of variable pressure conditions, a false alarm is prevented with the provision of retard chamber, thus the design allows for installation under both variable and constant supply pressure conditions.
Features
- Rapidrop Alarm Valve model C is a double seated clapper check valve with grooved seat design which ensures positive water flow for alarm operation and is designed for installation in wet pipe sprinkler system.
- n the event of variable pressure condition, false alarm is prevented with the provision of retard chamber, thus the design allows for installation under both variable and constant supply pressure condition.
- Operation of one or more automatic fire sprinklers causes the water to flow into the sprinkler system causing the alarm valve to open, allowing continuous flow of water into the system and transmittal of alarm, both electrical and mechanical.
- External bypass prevents false alarm under all supply pressure condition.
Specifications
- Product: Alarm Check Valve
- Brand: Rapidrop
- Model: Model C
- SIZE RANGE: DN150 (6")
- BODY TYPE: Flange x Flange, Groove x Groove
- WORKING PRESSURE: 17.5 bar (250 psi) *For DN200 FM approval is rated up to 14bar (200psi)
- FLANGE CONNECTION: ANSI 150 or PN16
- MATERIAL: Ductile Iron
- FINISH: Red RAL 3001
- APPROVALS: FM Approved, UL Listed
