Potter PAD100-HD Rate of Rise / Fixed Temperature Heat Sensor, UL Listed
AED 546.00 VAT included
Next product
Potter PAD100-4DB/6DB (4"/6" Addressable Detector Base)
AED 52.50 VAT included
Potter PAD100-PD Photoelectric Smoke Sensor, UL Listed
See all products from potterAED 525.00 VAT included

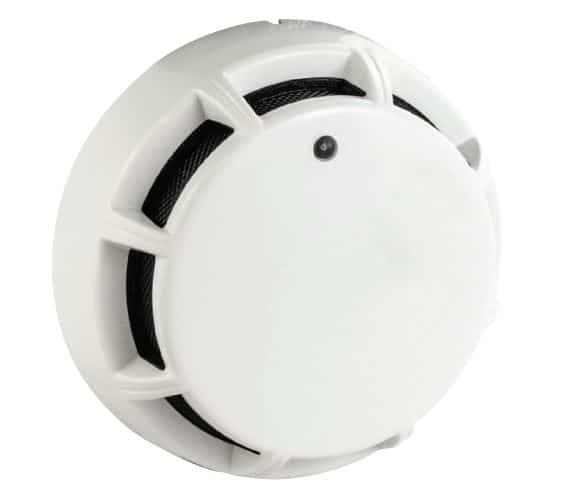

Potter PAD100-PD Photoelectric Smoke Sensor is a listed Analog Addressable smoke sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD100-PD is a low profile smoke sensor with a wide sensitivity range. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling.
Product Code : fs10074
Brand: Potter
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Potter PAD100-PD Photoelectric Smoke Sensor is a listed Analog Addressable smoke sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD100-PD is a low profile smoke sensor with a wide sensitivity range. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling. The PAD100-PD has a sensitivity range of 1.0 to 3.7 % per foot and is UL. The PAD100-PD features drift compensation and has built in dirty detector warning as well as. The PAD100-PD and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirement
Features
- Simple DIP switch address setting, no programming tool required
- Wide selectable sensitivity range of 1.0 to 3.7%/foot
- Optional locking tab to prevent unwanted removal
- Sensor communicates sensitivity to control panel
- Low profile, less than 2 inches with the base
- UL listed smoke calibration and sensitivity
- Product includes a 5 year warranty
- UUKL Listed for Smoke Control
- LED alarm indicator
Specifications
- Product: Photoelectric Smoke Sensor
- Brand: Potter
- Operating Voltage: 24 VDC
- Detector Current Draw: 300 µA
- Alarm indicator: 1 LED
- Alarm set-point range: 1.0 to 3.7 %/ft 3.6-12 %/m
- Installation temperature range: 32 to 120 ° F / 0 to 49 ° C
- Operating relative humidity range: 0% to 93% (Non-condensing)
- Start-up time: Max. 1 sec
- Maximum number of addresses per loop: 127
- Maximum number of lighted indicators in alarm per loop: 30
- Color: Eggshell White
- Weight (without base): 101g (3.56oz)
- Dimensions (without base): Height: 1.35 in (34mm) Diameter: 3.93 in (100 mm)
