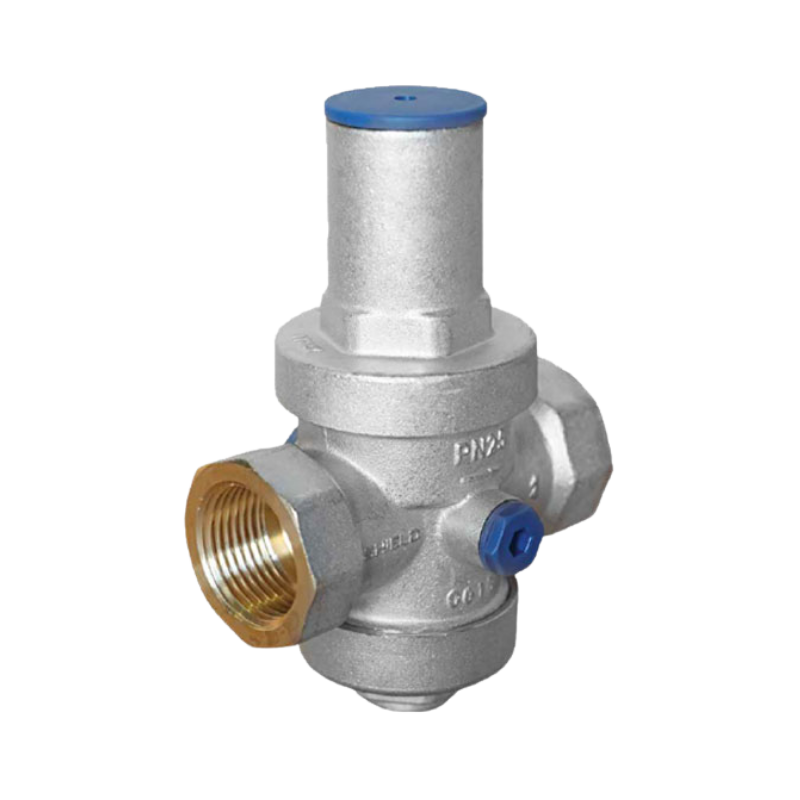

Shield Pressure Reducing Valve 1″ SD-91430K PN25
AED 220.50 VAT included
1″ brass pressure reducing valve for fire protection systems, PN25 rating, preset at 3.5 bar. Includes gauge ports and strainer.
In stock
Product Code : fs0507561
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Shield SD-91430K pressure reducing valve maintains constant downstream pressure in fire sprinkler systems. Features brass construction, stainless steel trim, replaceable seat, and test ports. Suitable for water and glycol mixtures. FM/UL approved.
Features
- Preset factory setting (3.5 bar typical)
- Includes integral strainer
- Gauge ports for pressure monitoring
- Adjustable pressure range: 1.5-7 bar
- Brass body with stainless steel trim
- Replaceable seat and seals
- FM/UL approved
- Suitable for water/glycol mixes
- Flanged connections
- Lockable adjustment
Specifications
- Size: 1" (DN25)
- Connection: Flanged (PN25)
- Body material: DZR brass
- Trim material: Stainless steel
- Pressure range: 1.5-7 bar adjustable
- Preset pressure: 3.5 bar
- Max inlet pressure: 25 bar
- Temperature range: -10°C to +120°C
- Flow direction: Arrow marked
- Approvals: FM/UL, EN 1567
