Honeywell SPXCDALMRFD Sensepoint XCD RFD – Remote Flammable Detector has been specifically designed for use with remotely mounted flammable gas sensors. This configuration is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The transmitter can be mounted at a suitable location away from this area where it is easy to access, view its display, and interact with via the user interface.
Previous product
Back to products
Qlight SM30, 220 V AC Miniature Motor Siren - Red
AED 196.88 VAT included
Next product
Tyco PSU830 Power Supply Module
AED 15,120.00 VAT included

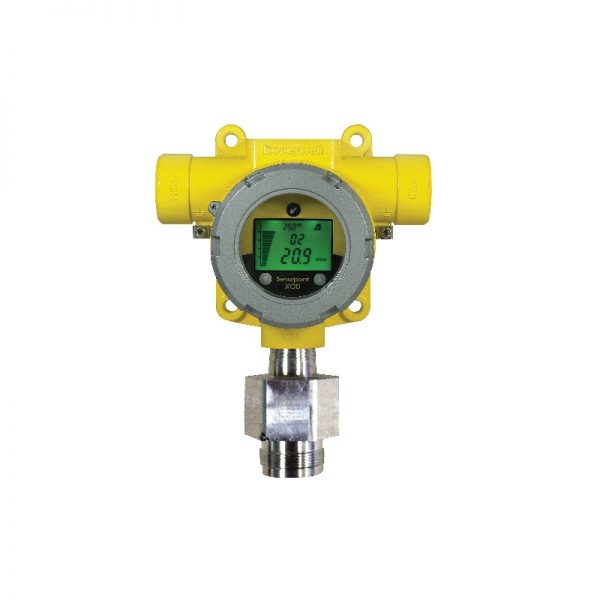

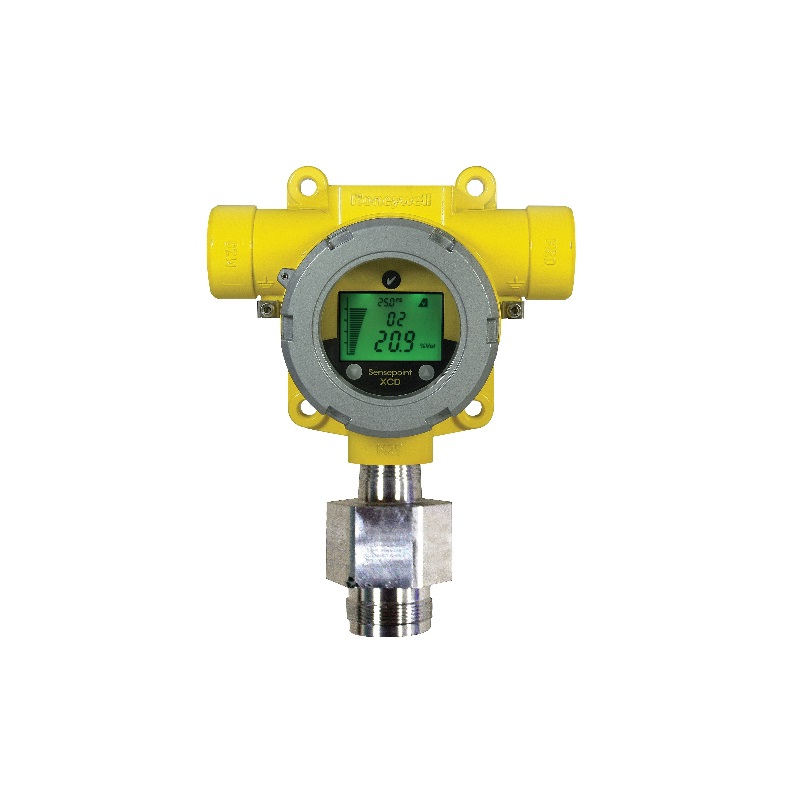

Honeywell SPXCDALMRFD Sensepoint XCD RFD – Remote Flammable Detector
AED 4,462.50 VAT included
Specifications
- Product: Remote Flammable Detector
- Brand: Honeywell
- Part No: SPXCDALMRFD
- Input Voltage Range: 18 to 32VDC (24VDC nominal)
- Max Power Consumption: 5 Watts
- Current Output: Sink or source
- Transmitter Housing Sensor: Epoxy painted aluminium alloy LM25 or 316 stainless steel
- IP Rating: IP66 in accordance with EN60529:1992
Features
- Compatible with high temperature sensors for use in and around Gas Turbine Enclosures and solvent based printing and coating drying ovens
- High temperature gas sensors have thermally matched beads for highest accuracy and stability enabling low alarm levels
- Transmitter can be mounted in easy to access area even if sensor is in a hard to access or restricted access area
- Standard temperature catalytic and infrared sensor types also available
- Compliant with the requirements of HSE guidance note PM84
- Sensor can be mounted up to 30 metres (100 feet) from transmitter
- Compliant with the requirements of HSE guidance note PM84
