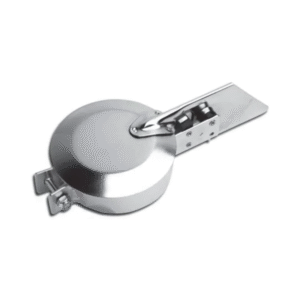

SILENCER RAIN CAP 2" 89420A-10
AED 110.25 VAT included

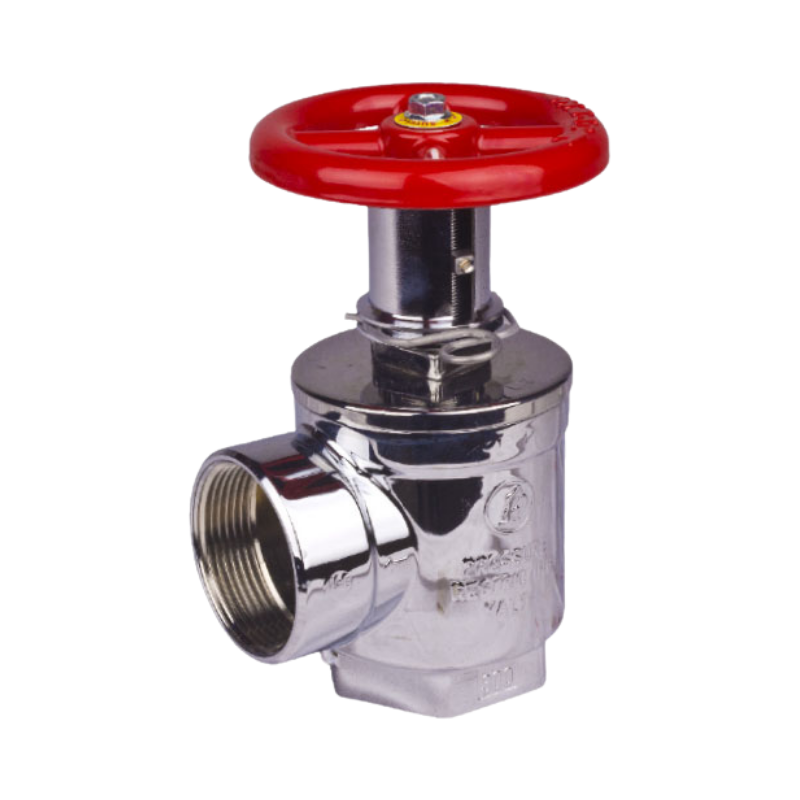

SHIELD SD-PRV205 PRESSURE REDUCING ANGLE VALVE (PRV) 300PSI/CHROME/A155, Size: 2½”
AED 614.25 VAT included
2½” chrome-plated pressure reducing valve with 300PSI max rating, adjustable output pressure 25-150PSI. Suitable for water systems.
In stock
Product Code : fs0507608
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Shield SD-PRV205 is a heavy-duty pressure reducing valve with chrome-plated brass body and stainless steel internals. Features adjustable pressure regulation, built-in strainer, and union connections for easy maintenance. Meets ASME A155 standards for pressure relief valves.
Features
- Adjustable output pressure (25-150PSI)
- Chrome-plated brass construction
- Union connections for easy service
- Built-in stainless steel strainer
- Internal bypass protection
- ASME A155 compliant
- 300PSI maximum inlet pressure
- 2½" female NPT threads
- Temperature range: 0-180°F
- Includes adjustment tool
Specifications
- Size: 2½" NPT
- Max Inlet Pressure: 300PSI
- Adjustable Range: 25-150PSI
- Flow Rate: 120GPM at 50PSI
- Body Material: DZR Brass
- Plating: Chrome (100µ thickness)
- Spring Material: 316 Stainless Steel
- Diaphragm Material: EPDM
- Standards: ASME A155, NSF/ANSI 61
- Weight: 5.2kg
