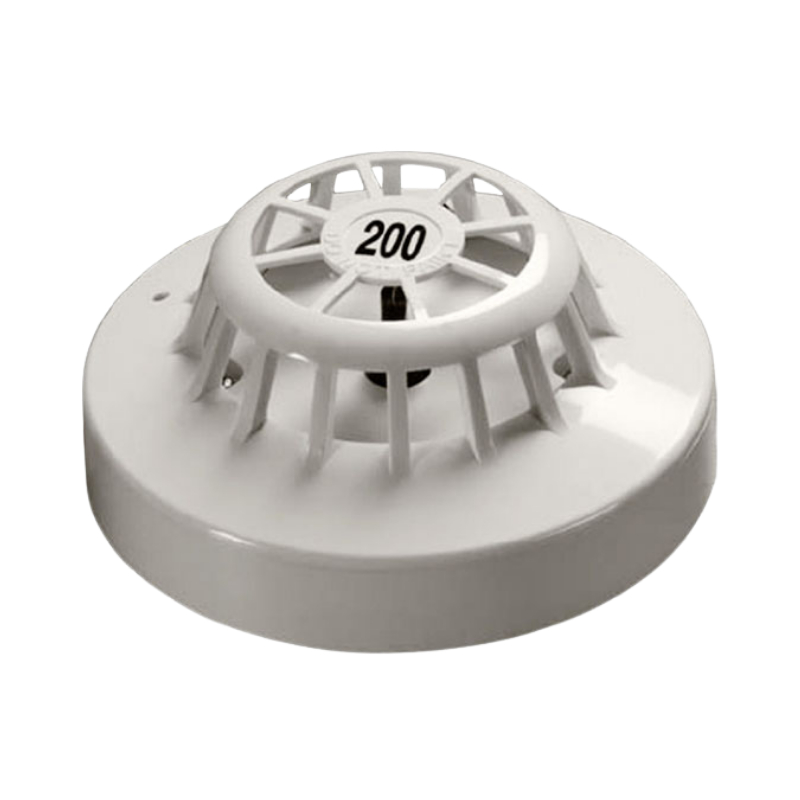

SHIELD S-C2015 CONVENTIONAL HEAT DETECTOR 200°F/93°C with Base
AED 110.25 VAT included
Fixed temperature heat detector (93°C/200°F) with mounting base, for fire alarm systems. EN54-5 certified.
In stock
Product Code : fs0507607
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Shield S-C2015 conventional heat detector features a 93°C (200°F) fixed temperature element with rugged polycarbonate housing. Includes FE-II compatible base for easy installation. Ideal for kitchens, garages and industrial areas where smoke detectors are unsuitable.
Features
- Fixed temperature operation (no reset required)
- Includes mounting base (FE-II series)
- Rugged polycarbonate construction
- Twist-lock installation
- Compatible with conventional panels
- LED indicator on alarm
- EN54-5 certified
- IP42 rated
- 10-year operational life
- Testable with heat generator
Specifications
- Activation Temp: 93°C ±5% (200°F)
- Dimensions: 100mm Ø × 45mm H
- Base Diameter: 110mm Ø
- Weight: 150g (detector + base)
- Operating Voltage: 8-30V DC
- Current: 50µA (standby), 20mA (alarm)
- Terminals: Screw type (base)
- Temperature Range: -30°C to +70°C
- Humidity Range: 10-95% RH
- Standards: EN54-5, CE
