Polon Alfa Fire Alarm Panel 4100(Without Programming)
See all products from polon-alfaAED 3,570.00 VAT included

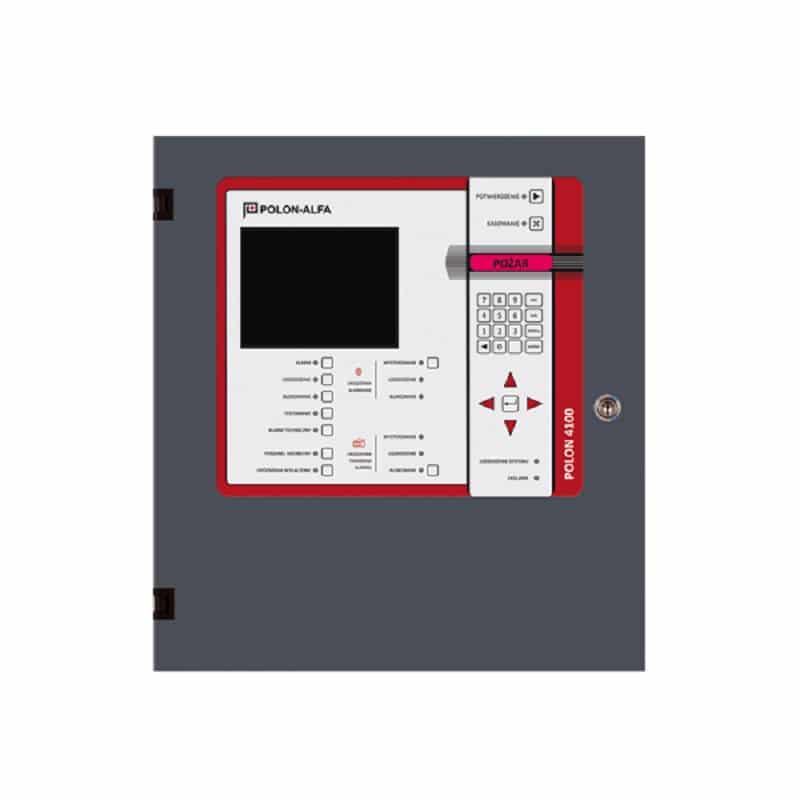

The POLON 4100 fire alarm control panel is designed to integrate all interactive addressable POLON 4000 fire alarm system elements. The control panel coordinates the operation of all units in the system as well as makes decisions about actuating a fire alarm, control of the collaborating signalling devices and fire protection equipment and transmitting information to the monitoring centre or the supervision system.
Product Code : FS00066
Brand: Polon-Alfa
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The POLON 4100 fire alarm control panel is designed to integrate all interactive addressable POLON 4000 fire alarm system elements. The control panel coordinates the operation of all units in the system as well as makes decisions about actuating a fire alarm, control of the collaborating signalling devices and fire protection equipment and transmitting information to the monitoring centre or the supervision system.
The POLON 4100 control panel is recommended for protection of various types of buildings, especially small size premises such as hotels, office buildings, banks, warehouses, historical buildings, intelligent buildings, etc.
The POLON 4100 control panel inter operates with 4043 model range detectors – without possibility to use interactive alarm variants – on with such possibility when using 4046 model range detectors.
Features
- 2 loops with 64 addresses
- 3 supervised relay outputs
- 2 monitoring inputs
- Supervised signaling line
- 240x320pix graphic
- EN 54-2 display
Specifications
- Supply voltage: main 230V
- Supply voltage: standby 2pcs. 12V 17Ah to 22Ah
- Max. quiescent current consumption: 0.7A
- Numer of alarming variants: 17
- Signaling lines (potential): 1
- Number of detectors in line: 64
- Detection line isolation resistance: or more
- Relay outputs: potential free in control panle 3 load 1A 30V
- Number of detection lines: 2
- Number of monitoring lines: 2
- Number of detection zones: 128
- Operating temperature range from -5°C to 40°C
