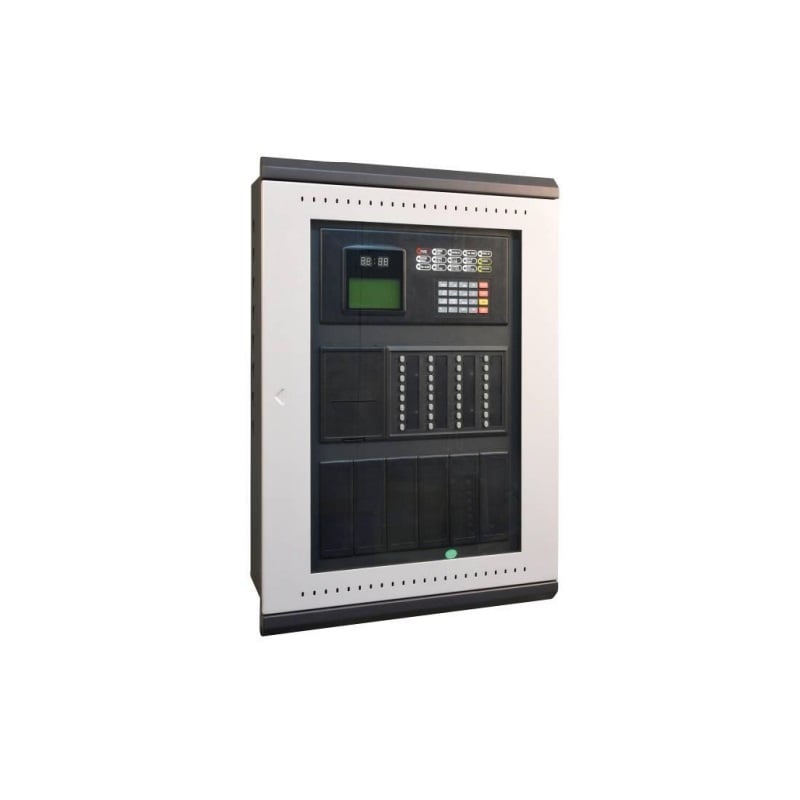

GST200-2 Intelligent Fire Alarm Control Panel, 2 loop with P-9940A Class A RS485 Network Card addressable fire detection control panel with up to 242 devices per loop, the system is packed with features that are not usually associated with smaller and medium systems. The GST 200-2 provides a high-quality solution at an exceptional value. By utilizing advanced GST Protocol, the system is compatible with the complete range of GST intelligent Detectors, Sounders, Call Points, Interfaces, including gas extinguishing controls. Networkable with all GST intelligent fire control panels the system can be expanded up to a maximum of 240 GST panels (over 48,000 devices).
GST200-2 Intelligent Fire Alarm Control Panel, 2 loop with P-9940A Class A RS485 Network Card
AED 6,048.00 VAT included
Fire Projects has supply, install and test and commission GST 200-2 single loop and two loop addressable fire detection control panel with up to 242 devices per loop, the system is packed with features that are not usually associated with smaller and medium systems. The GST 200-2 provides a high quality solution at exceptional value. By utilizing advanced GST Protocol, the system is compatible with the complete range of GST intelligent Detectors, Sounders, Call Points, Interfaces, including gas extinguishing controls. Networkable with all GST intelligent fire control panels the system can be expanded up to a maximum of 240 GST panels (over 48,000 devices).
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
- Standard: EN54 Part 2/4 ; BS5839 Part 4
- Approvals: LPCB, CPD
- Main Input Voltage: 220/230 ± 10% VAC 50/60 Hz
- Input Current Rating: 0.500A, Fuse: 2A delay
- Operating Temperature: 0°C- 40°C /95% relative humidity
- Protection: IP 30
- Application: Indoor installation
- Programming: Laptop using GST Defining Software/P-9930
- Zone Capacity: 30 Zones programmable
- Loop Parameter: loop expandable to 2 with LC200 card
- Loop Capacity: 477; Loop 1:235; loop 2:242(Address)
- Loop Topology: Class A or B
- Loop Voltage: 24 VDC Nominal (21-27 VDC)
- Loop Current: 0-300mA
- Loop Length/Cable: 1.00mm²-800m-Full Load; Output Circuits: 1.5mm²-1000 m-Full Load; Dimension (HLW): Outer: 580 x 420 x 30 mm, Inner: 550 x 393 x 173 mm
- Non-Volatile memory ensures the data does not loss even if power supply is accidentally removed
- Sounder strobe output provides 0.5A/24V load, compatible with GST conventional sounders
- Max. 30 zones. Each zone has its own alarm and fault/disable indicator and a label
- Compatible with GST intelligent and digital products
- RS232 interface enables communication with PC
- Optioanl expaned to 2 loops, 477 loop devices
- RS485 or CAN interface enables networking
- 15 LEDs to display important information
- Capacity 236 addressable devices
- 8X18 characters LCD screen
