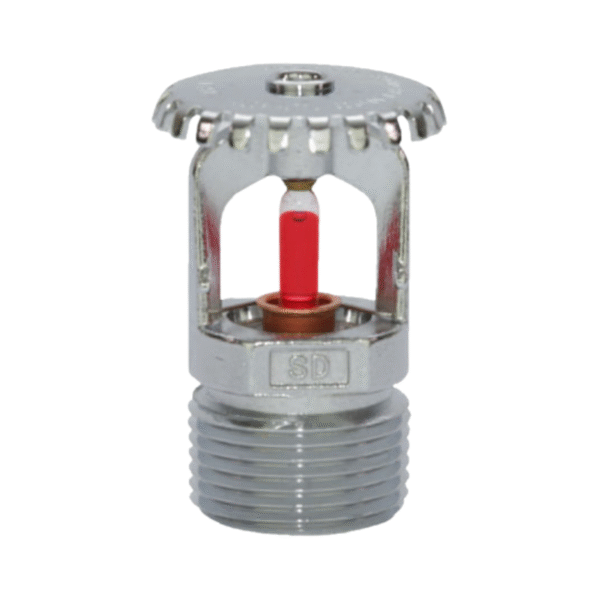

SHIELD Upright Sprinkler 3/4″ 79°C S/R SD5120
AED 47.25 VAT included
3/4″ NPT upright fire sprinkler with 79°C temperature rating and standard response. FM/UL approved for light hazard areas.
In stock
Product Code : fs0507676
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD SD5120 upright sprinkler features a 3/4″ NPT male connection, 79°C thermal element, and 5.6mm orifice. Brass construction with corrosion-resistant finish provides reliable performance in commercial/industrial applications. Includes solder-type liquid-filled bulb.
Features
- 3/4" NPT male thread
- 79°C liquid-filled glass bulb
- Standard response (S/R)
- 5.6mm (K=5.6) orifice
- Brass construction
- Corrosion-resistant finish
- FM/UL approved
- For light hazard areas
- Deflector produces 3.7m spray pattern
Specifications
- Connection: 3/4" NPT Male
- Temperature Rating: 79°C (Ordinary)
- Orifice: 5.6mm (K=5.6)
- Response: Standard (S/R)
- Body Material: DZR Brass (CW602N)
- Finish: Electroless Nickel Plating
- Pressure Range: 0.5-12 bar
- Coverage Area: 12.1m² (130ft²)
- Standards: UL 199, EN 12259-1
- Weight: 0.28kg
