SIBCA-150mm Butterfly Valve 300 PSI Grooved-GN-0385 UL/FM Listed
AED 462.00 VAT included
Next product
SIBCA-250mm Butterfly Valve 300 PSI Grooved-GN-0385 UL/FM Listed
AED 1,082.55 VAT included
SIBCA-200mm Butterfly Valve 300 PSI Grooved-GN-0385 UL/FM Listed
AED 726.60 VAT included
In stock
Product Code : fs0507784
Brand: SIBCA
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

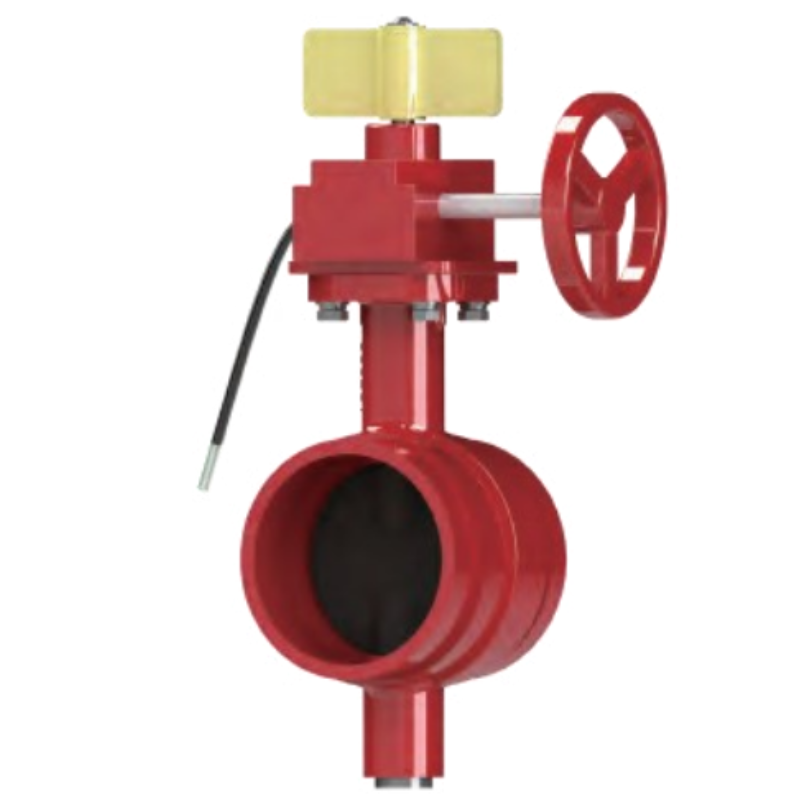

The SIBCA GN-0385 200mm Butterfly Valve (Grooved, 300 PSI) is a high-performance valve designed for fire protection and industrial piping systems. Certified with UL and FM approvals, this butterfly valve ensures superior flow control, easy operation, and long-lasting reliability.
Featuring a grooved-end connection, the valve allows quick and secure installation, making it ideal for fire sprinkler and suppression systems. Built to withstand high pressure up to 300 PSI, it guarantees dependable performance in critical safety applications.
Features
- Quarter-turn operation for quick open/close
- Grooved end connection for easy installation
- UL listed and FM approved
- 300 PSI working pressure
- Single gear box operation
- Ductile iron body for durability
- EPDM-coated disc ensures leak-tight sealing
- Stainless steel stem for corrosion resistance
- Low operating torque
- Suitable for fire protection piping systems
Specifications
- Model: GN-0385
- Size: 200mm (8 inch)
- Working Pressure: 300 PSI
- End Connection: Grooved (AWWA C606 / VDS 2100)
- Body Material: Ductile Iron ASTM A536
- Disc Material: Ductile Iron ASTM A536 + EPDM Coated
- Stem Material: Stainless Steel AISI 410
- Bushing Material: Bronze ASTM B150M C63000
- Temperature Range: -10ºC to 120ºC
- Approvals: UL Listed / FM Approved
- Brand: Sibca
