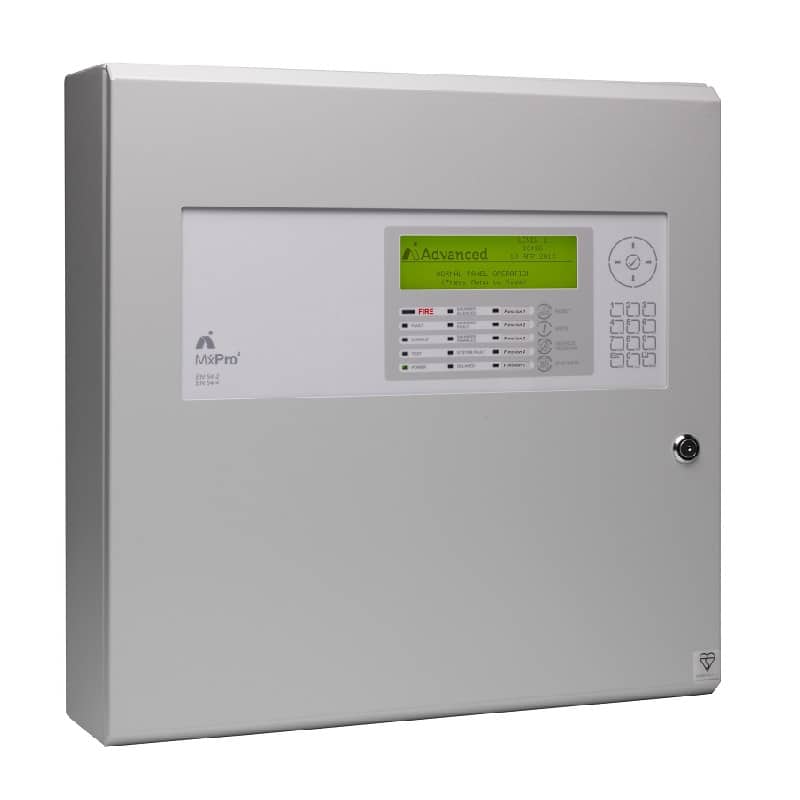

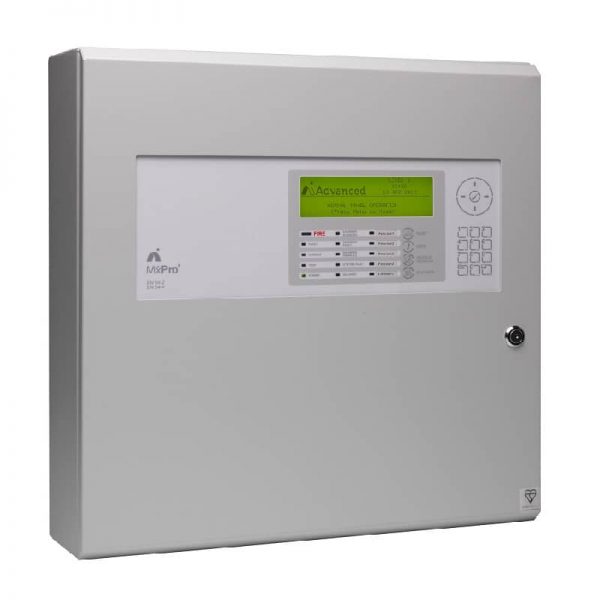

MX-4010 Advanced 2 Loop 20 Zone Analogue Addressable

Name: MX-4010 Advanced 2 Loop 20 Zone Analogue Addressable
SKU: fs108254
Availability: InStock

See all products from advanced

AED 5,626.95 VAT included

The control panel consists of a simple to use LCD menu driven graphical interface, dual, flash based microprocessor technology driven by a 4Amp PSU and charger.

In stock

Compare

Product Code : fs108254 Brand: Advanced Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The control panel consists of a simple to use LCD menu driven graphical interface, dual, flash based microprocessor technology driven by a 4Amp PSU and charger . Approved to EN52 parts 2 and 4.

Dedicated system navigation keys makes learning this control panel user friendly as well as Installer friendly due to the uncomplicated, trouble free, Commissioning and Fault Finding.

When connected to the fault tolerant Ad-NeT network, the panel operates as a true peer-to-peer interface (with up to 1000 shared zones) with full cross panel reporting, control and cause and effect functionality.

Features

Fully expandable from 1 to 2 loops via common plug in loop driver boards
Full support of Apollo (Discovery, Xplorer, S90 and XP95) and Hochiki ESP protocols
Advanced graphical LCD user interface with up to 1000 fire zones as standard, allowing full EN54 compliance without additional hardware or LED indication.
4 Amp power supply and charger to EN54 part 4
Optional on-board or remote printer
Dual, flash based, microprocessor technology with on-board real time clock
Dedicated RS232 serial port for direct PC or modem connection
Installer friendly Auto Learn and Loop Detection facility for trouble-free, commissioning.
Fully on-site programmable via on-board alphanumeric keypad or PC configuration tools
Flash memory and the advanced graphical display enables the panels to be configured to operate in virtually any language with any character set and allows the installer's logo and company details to be applied to the LCD display
