MSA 10153984 Altair 2XP Gas Detector, H2S-pulse (10, 15), Charcoal
AED 2,310.00 VAT included
Next product
3M DBI-SALA Nano-Lok 3101277 Twin-Leg Quick Connect Self Retracting Lifeline, Web
AED 2,467.50 VAT included
Description

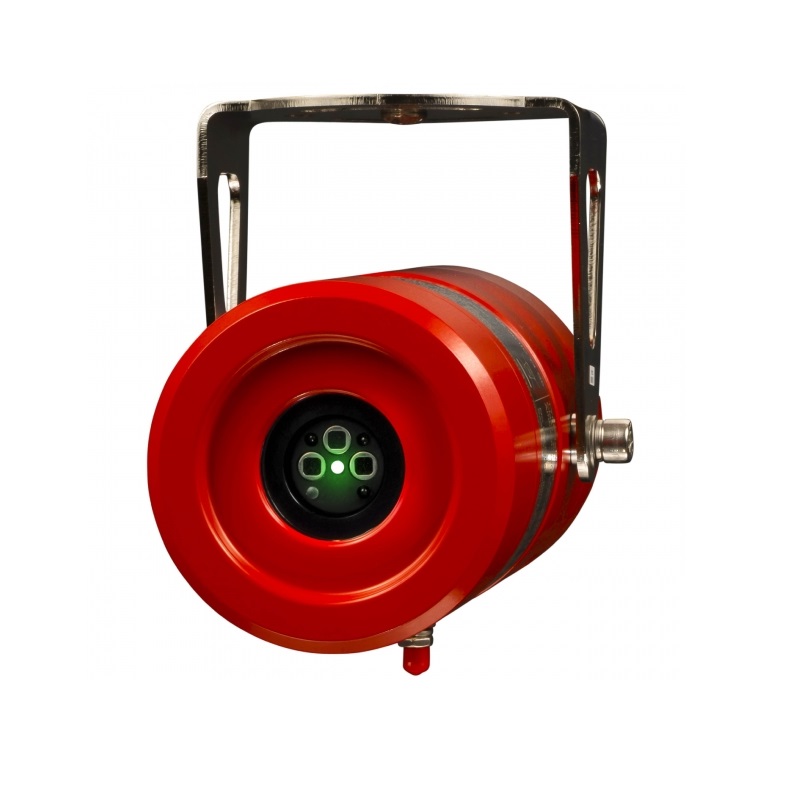

Micropack FDS303 Multi-Spectrum IR Flame Detector is designed for hazardous industries where fast fire detection is critical and nuisance alarms are not an option. The FDS303 complements the FDS301 and FDS300 Visual Flame Detectors by delivering superior performance in the detection of hydrocarbon fires that are not detectable in the visible spectrum. The FDS303 utilizes the latest IR flame detection algorithms to ensure maximum false alarm immunity.
Features
- Microprocessor controlled heated optics, maintains operation in harsh weather conditions (snow, ice, condensation)
- Easy integration using industry standard outputs: Alarm and Fault Relays; 0-20mA; HART®, as standard
- Adjustable sensitivity levels, for application flexibility and to ensure detectors do not cross vote
- Multi-spectrum IR design delivers long detection distances and enhanced false alarm immunity
- Continuous optical test, without a reflector, verifies operation and improves device up-time
- External testing with a long-range flame simulator minimises the need for scaffolding
- Certified performance testing to multiple fuels to FM 3260 and EN 54-10
- International hazardous area approvals, FM / ATEX / IEC Ex
- Certified SIL 2 capable
- 5 year warranty
Specifications
- Product: IR Flame Detector
- Brand: Micropack
- Model: FDS303
- Operating Voltage: 24 Vdc Nominal – (Range 18 to 32 Vdc)
- Power Consumption: 3 W minimum (heater off); 12 W maximum (heater on)
- Field of View: 90° horizontal by 90° vertical
- Speed of Response: 5 seconds (Typical)
- Outputs: Relay contacts (DPDT 2A at 30Vdc) - alarm and fault. 0-20mA, HART® 7
- Dimensions: 4” Dia x 8” L (inches) 100 mm Dia x 200 mm
- Weight: Aluminum 5.5 lbs (2.5 Kg) Stainless steel 13.2 lbs (6 Kg)
