Sense-Ware T-229/4P UV/IR Flame Detector Universal Test Lamp activates UV, IR, and UV/IR Flame Detectors which detect in the 185-235 nm UV and 4.4 µ IR frequency ranges. For UV only detectors the maximum distance is up to 8 meters (26 ft) in the continuous mode. The test range for IR and UV/IR detectors is up to 4 meters (13 ft). Most IR Flame Detectors have an extra alarm criterion; analyzing the flicker frequency of fire. The Test Lamp T-229/4P can be put into the pulse mode by means of a selection switch on the left side of the Test Lamp. The lamp then emits pulsed energy with a frequency of approx. 2 Hz. After the alarm delay time, the IR or UV/IR Flame Detector will activate. Not suitable for: IR/IR- (dual IR), IR/IR/IR (IR3 or triple IR) Flame Detectors, whether or not in combination with a UV sensor. For use in safe areas only.
Previous product
Back to products
Salvator RV-PCSS-06 Retractable Fall Arrestor Block - 6 Mtrs
AED 945.00 VAT included
Next product
Solo 100 Smoke Detector Tester Access Pole 6 Meters
AED 2,257.50 VAT included

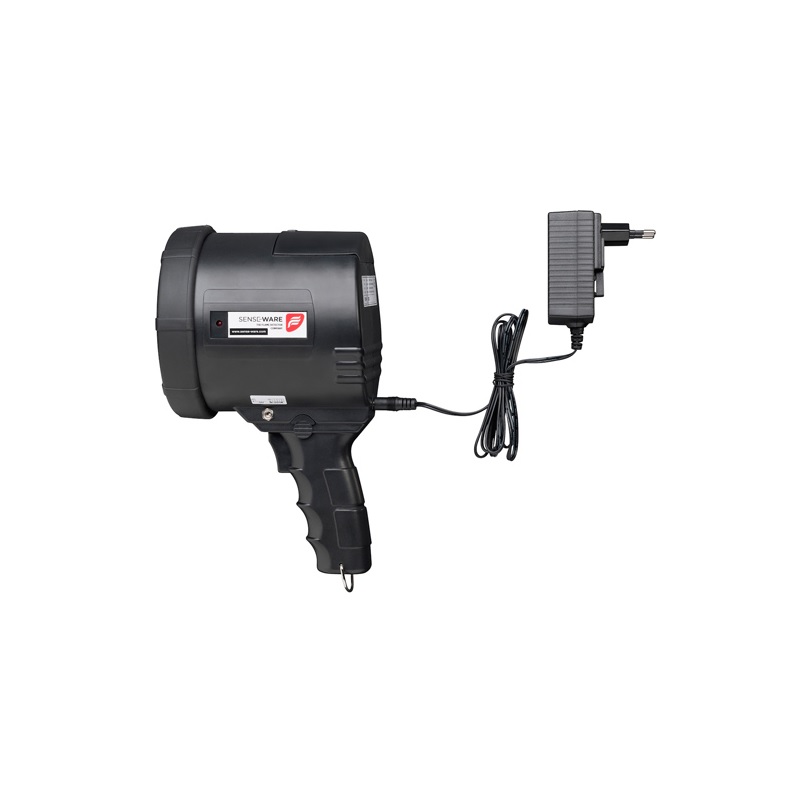

Senseware T-229/4P UV/IR Flame Detector Universal Test Lamp
AED 6,898.50 VAT included
Specifications
- Product: UV/IR Flame Detector Universal Test Lamp
- Brand: Sense-Ware
- Model: T-229/4P
- Test range UV Flame Detectors: up to 8 m (26 ft) in continuous mode, up to 4 m (13 ft) in pulse mode
- Housing; material, dimensions / weight: ABS/PC, 160 x 140 x 260 mm (6.5 x 5.5 x 10 “); 0.65 kg (1.4 lbs)
- Optional carrying case: Polypropylene, inlay: Polyurethane
- Battery: Sealed Lead Acid, 12 V / 2.7 Ah
- Charger, (Adapter): 100-240 Vac, 1600 mA switching with pins for US, EU, GB and AU
- Light bulb: Broad Band, 12 Vdc / 100 W
- Ingress protection rating IP30
Features
- The life time of the battery is negatively influenced if you use the Test Lamp continuously longer than 10 minutes and in one go. The Test Lamp will automatically stop working after 30 seconds
- The Test Lamp has a protective grate which should not be removed. Warning, after use the grate may be hot. Do not stick objects through the grate.
- Do not use Test Lamp when damaged. Do not open the lamp, send it back for repair. Contact Sense-WARE for details.
- The sealed lead battery has a lifetime of several years. Please ask your local city official how to dispose the unit.
- Make sure testing of the Flame Detectors does not activate unwanted alarm signals.
- Store the Test Lamp clean and dry. A dirty reflector will reduce the test range
- Do not use the Test Lamp in wet conditions.
