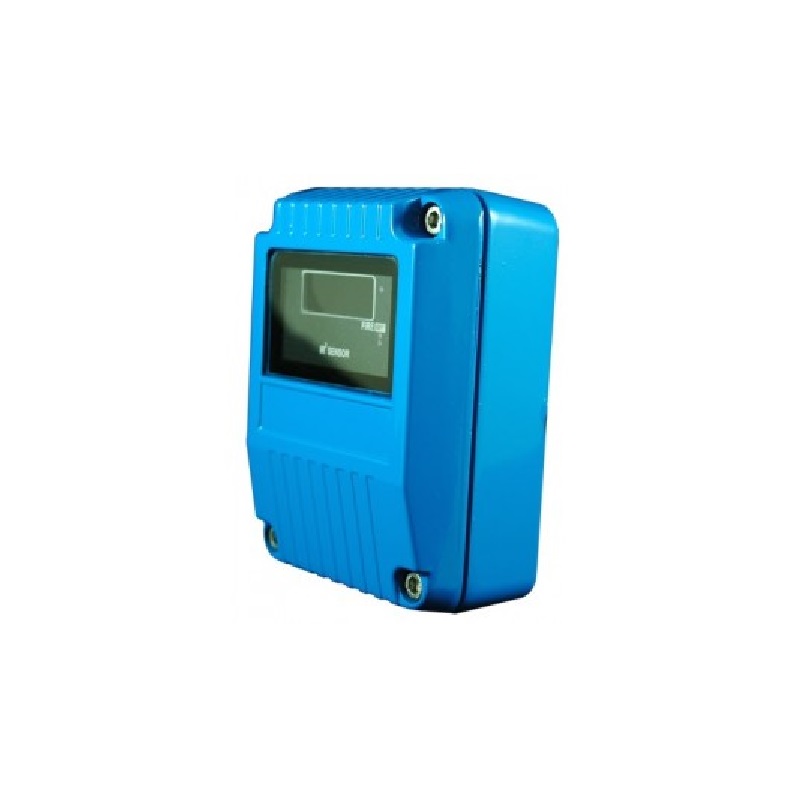

Hochiki IFD-E(IS) Infrared Intrinsically Safe Flame Detector Alloy Housing is designed for use where open flaming fires may be expected and responds to the light emitted from flames during combustion. The detector discriminates between flames and other light sources by responding only to particular optical wavelengths and flame flicker frequencies. This enables the detector to avoid false alarms due to such factors as flickering sunlight.
Previous product
Back to products
Heat Alarm 9v LX 227 Battery Operated Build In Alarm Stand Alone
AED 57.75 VAT included
Next product
Honeywell SPSTAXO2 Sensepoint Gas Detector Transmitter for Oxygen (O2) 0-25%
AED 2,415.00 VAT included
Hochiki IFD-E(IS) Infrared Intrinsically Safe Flame Detector Alloy Housing
AED 10,342.50 VAT included
Specifications
- Product: Flame Detector
- Brand: Hochiki
- Model: IFD-E(IS)
- Material: Die - Cast Zinc Alloy (ZA12)
- Operating Voltage: 14 – 30Vdc
- Alarm Current: 3 ~ 28 mA
- Dimensions: 142H / 108W / 82D (mm)
- Field of View: 90° min. Cone
- Test Signal Voltage: 14 to 30Vdc
- Weight: 2kg
Features
- Class 1 performance as defined in BS EN54-10:2002 (on the high sensitivity setting)
- Unaffected by convection currents, draughts or wind and solar-blind
- ATEX certification to: EEx ia IIC T4 (135 C) (zones 0, 1 and 2)
- Responsive to a flame more than 25 m away
- Tolerant of fumes, vapours dust and mist
- Selectable response speed
- Optical self-test
- SIL capable
