Spectrex SharpEye 40/40C-L4B UV / IR flame detector is part of the leading, next-generation SharpEye 40/40 series. Featuring fast detection in under five seconds with proven immunity to false alarms, the integrated UV and
IR optical sensors detect hydrocarbon-based fuel and gas fires, ensuring flawless performance to keep a
SharpEye on your safety.

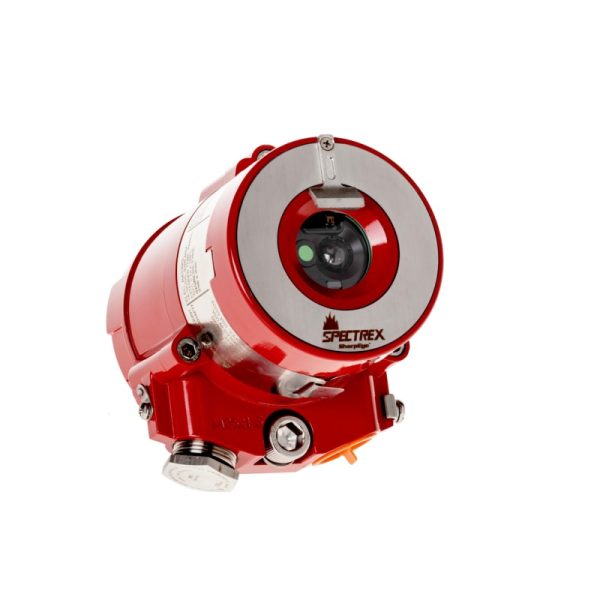

Spectrex SharpEye 40/40C-L4B UV / IR flame detector
AED 14,700.00 VAT included
Description
Specifications
- Product: UV / IR flame detector
- Brand: Honeywell Spectrex SharpEye
- Model: 40/40C-L4B
- Operating voltage: 24 Vdc nominal (18-32 Vdc)
- Power consumption: Standby: Maximum 3 W (8 W with heated window) Alarm: Maximum 4.2 W (9.6 W with heated window)
- Spectral response: Ultraviolet: 0.185 to 0.260 μm Infrared: 4.3 to 4.8 μm
- Detection response time: Standard response: Typically 5 sec
- Relays: Alarm, fault, and auxiliary SPST volt-free contacts rated 2A at 30 Vdc
- Dimensions Detector: 4 x 4.6 x 6.18 in (100.6 x 117 x 155 mm)
- Weight Detector aluminum: 2.8 lb (1.3 kg) Tilt mount: 2.5 lb (1.1 kg)
Features
- Innovative UV and IR built-in test - continuously validating the optical integrity and the electronic circuitry
- Heated optic for impeccable performance in challenging environmental conditions
- Multiple output options for maximum compatibility with standard infrastructures
- Plug and play - factory calibrated for immediate use in any fire detection system
- Performance and reliability approved by recognizable certification bodies
- Enhanced durability backed up by with three-year warranty
- Worldwide and regionally certified for hazardous areas
- Three sensitivity levels, adapting to any application
- Internal log event recorder to analyze past events
- Universal wiring option for fast ordering process
