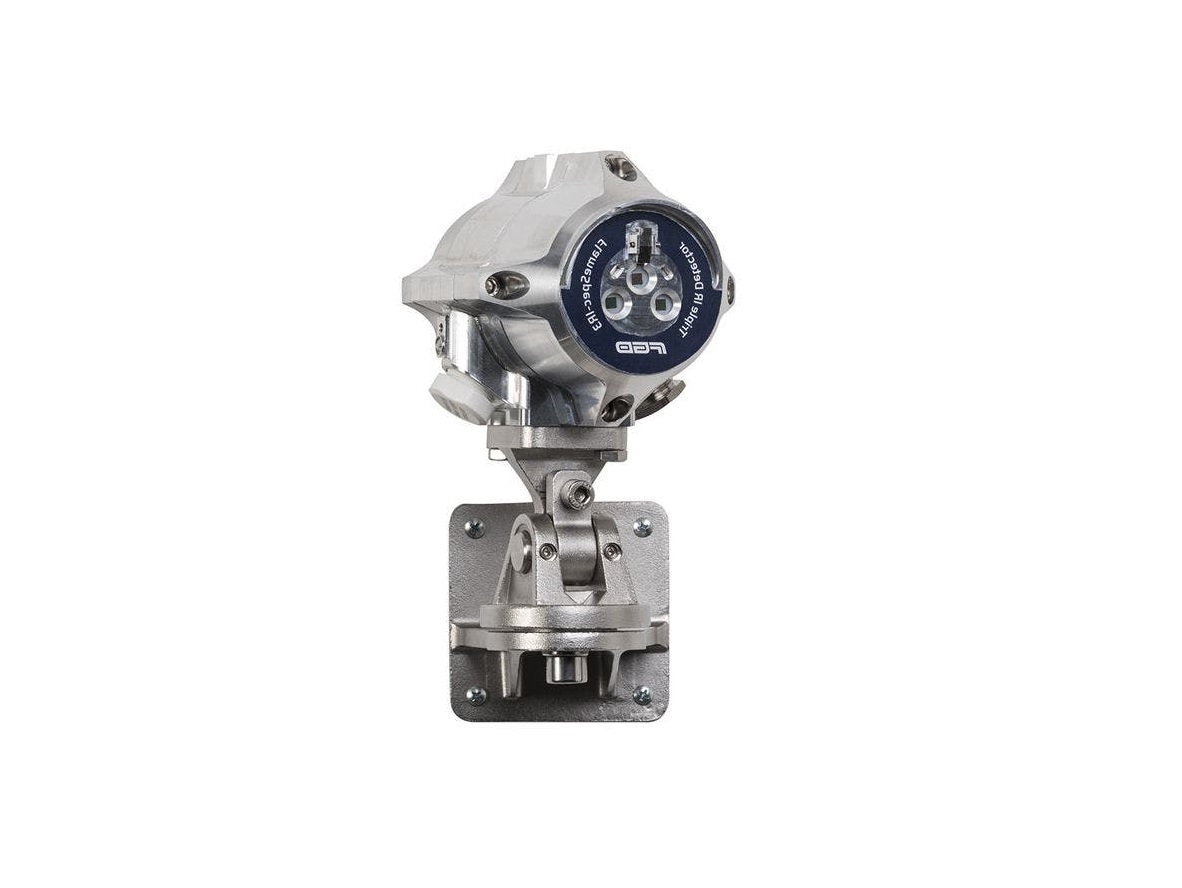

FGD FLS-IR3-AS21 IR3 Flame Detector
AED 17,430.00 VAT included
Description
FGD FLS-IR3-AS21 IR3 Flame Detector from FGD provides ultra-fast response and reliable detection of fire. The IR3 model detects all types of hydrocarbon fires (visible and non-visible).
This addresses slow growing fires as well as fast eruptions of fire using their IR3 technology, however the triple IR3 model will also be able to detect within 40 milliseconds of fireballs or explosions and only 1.3 seconds and 50 feet away from a standard fire (for 1 ft2 n-heptane pan fire at up to 50 ft. distance).
Features
- Data/Event logger capability where alarms, faults and other relevant events are logged to a non-volatile memory
- High immunity to false alarms (see the datasheet for detailed information)
- The field of view for IR detection is 90° Horizontal and 75° Vertical
- Both include a window heater to avoid any condensation or icing
- Can be used in all weather and light conditions
Specifications
- Product: Flame Detector
- Brand: FGD
- Model: FLS-IR3-AS21
- Spectral Response: Three IR Bands
- Operating Voltage: 24 VDC nominal (18-32 VDC)
- Response Time: Typically 5 seconds
- Sensitivity Ranges: 4 Sensitive ranges for 1 ft2 (0.1m2)
- Built-in-Test (BIT): Automatic (and Manual)
- Cable Entries: 2 x 3/4" - 14NPT conduits or 2 x M25 x 1.5 mm ISO
- Relays: Alarm, Fault and Auxiliary SPST volt-free contacts rated 2A at 30V DC
