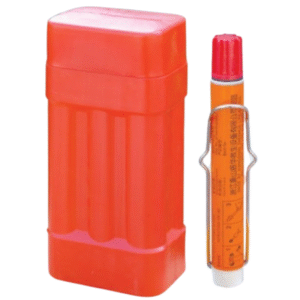

Red Hand Flare Signal – DNV-GL SOLAS MED Type Approved(MOQ of 2 Pcs)
AED 63.00 VAT included

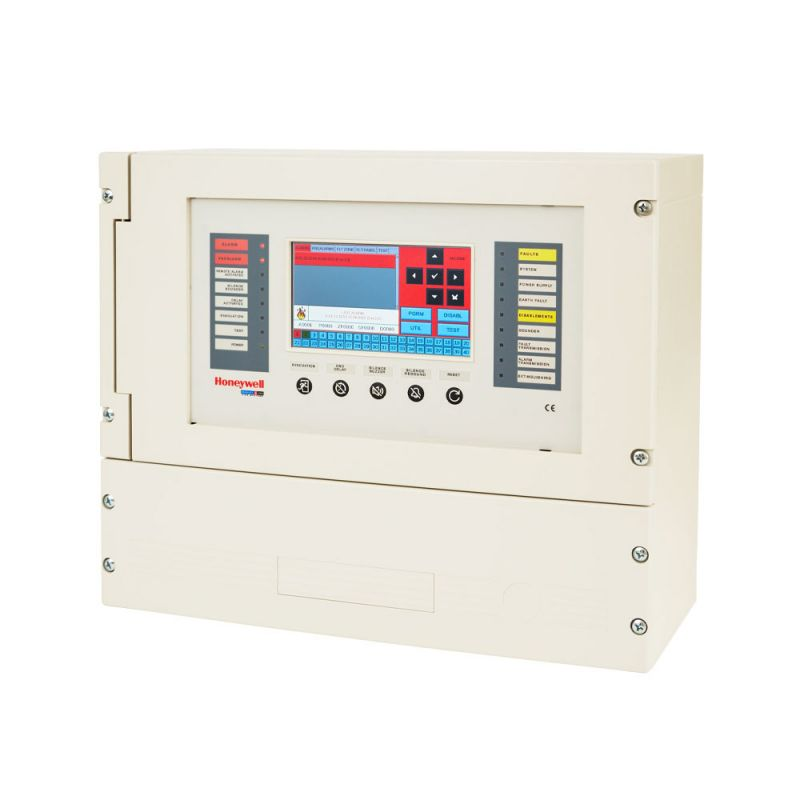

Morley Max MA-8000-02 Fire Alarm Control Panel – 4 Loop Expandable to 8
AED 9,962.40 VAT included
Morley Max MA-8000-02 Fire Alarm Control Panel is part of Honeywell’s advanced Morley-IAS Max range, offering reliable and scalable fire detection for medium to large buildings.
This model comes with 4 detection loops as standard, expandable up to 6 or 8 loops with MA-LIB2 expansion cards, supporting hundreds of devices across a single system. With CAN bus networking, up to 64 panels (128 loops) can be connected in a fail-safe network, providing total building protection.
Description
Morley Max MA-8000-02 Fire Alarm Control Panel is part of Honeywell’s advanced Morley-IAS Max range, offering reliable and scalable fire detection for medium to large buildings.
This model comes with 4 detection loops as standard, expandable up to 6 or 8 loops with MA-LIB2 expansion cards, supporting hundreds of devices across a single system. With CAN bus networking, up to 64 panels (128 loops) can be connected in a fail-safe network, providing total building protection.
The panel features a 7-inch TFT color touchscreen, intuitive user interface, 40 virtual zonal indicators (expandable to 1120 with MA-LCD7 repeaters), and extensive event logging (up to 10,000 events stored). Designed for high performance, the MA-8000-02 offers auto-programming, Boolean cause-and-effect logic, advanced filtering, and multiple installation options including wall, flush, or rack mounting.
Ideal for hospitals, commercial complexes, hotels, and industrial facilities, the MA-8000-02 delivers maximum reliability and flexibility for critical fire safety applications.
Features
- 4 detection loops, expandable to 8 with MA-LIB2 cards
- Network up to 64 panels / 128 loops via CAN bus
- 7” TFT touchscreen with intuitive UI and color-coded events
- 40 virtual zones standard, expandable to 1120 with MA-LCD7 repeater/mimic
- Event log storage: 10,000 historical + 4,000 active events
- Boolean cause-and-effect logic for advanced programming
- Auto-programming & day/night sensitivity adjustments
- Multiple mounting options: wall, flush, or 19” rack
- Certified to EN54-2, EN54-4, and EN54-13
Specifications
- Model: MA-8000-02
- Loops: 4 (expandable to 6/8 with MA-LIB2 expansion cards)
- Networking: CAN bus, up to 64 panels / 128 loops
- Display: 7” TFT color touchscreen (800x480, 256 colors)
- Zonal Indicators: 40 virtual zones (expandable to 1120 with MA-LCD7)Event Log: 10,000 historical events + 4,000 active events
- Power Supply: 24V – 200W PSU
- Battery Capacity: 2 × 12V / 38Ah max
- Loop Power: 750mA per loop
- Outputs: 1 monitored 1A sounder circuit 3 configurable alarm/function relays (NO/NC or monitored) 1 fault relay (NO/NC) 24V 1A Aux supply Ports: USB, RS485 isolated, 2 × RS232/RS485 isolated (Printer/TPP) Dimensions: 398 × 483 × 217.5 mm Installation: Wall mount, flush mount, or 19” rack mount Environmental: Operating Temp: -5°C to +40°C Storage Temp: -10°C to +50°C Humidity: 5–95% non-condensing IP Rating: IP30
