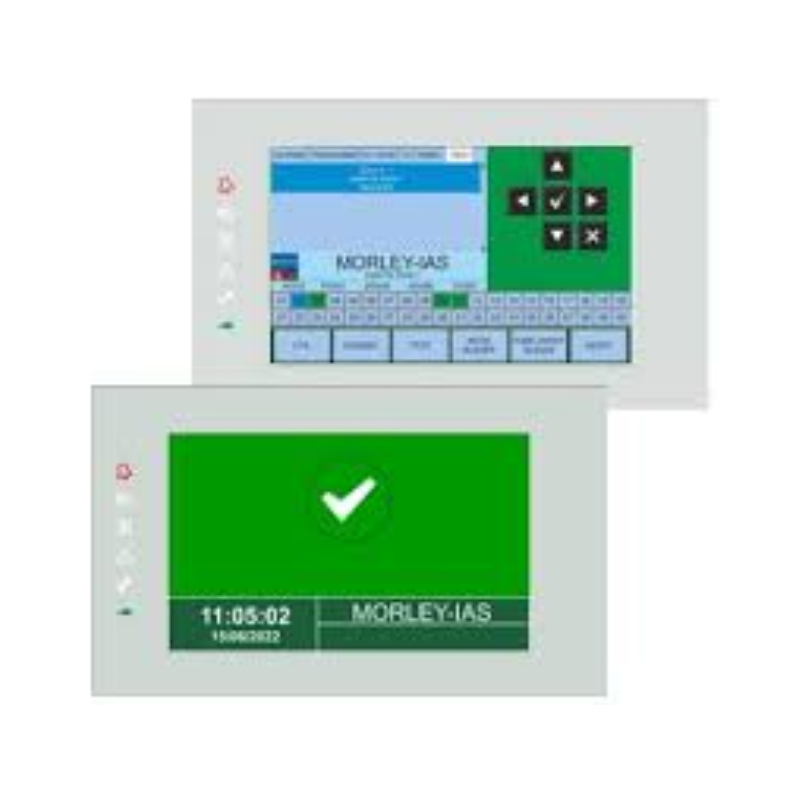

Morley Max MA-LCD7 Repeater / Zonal Mimic – 7” Touch Screen

Name: Morley Max MA-LCD7 Repeater / Zonal Mimic – 7” Touch Screen
SKU: fs0507924
Price: 3852.45 AED
Availability: OutOfStock

AED 3,852.45 VAT included

Morley Max MA-LCD7 Repeater / Zonal Mimic – 7” Touch Screen is a versatile and modern repeater panel designed to complement the Morley-IAS Max fire alarm control system. Featuring a 7-inch TFT color touchscreen, intuitive navigation, and a sleek low-profile design, it provides users with clear visibility of events, alarms, and system statuses.

Out of stock

Compare

Product Code : fs0507924 Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The MA-LCD7 can be programmed as either a Repeater or a Zonal Mimic, offering flexibility for different installation needs. When operating as a repeater, it provides global event display, control options (Mute, Silence/Resound, Reset), and access to network history logs. When configured as a Zonal Mimic, it supports up to 80 virtual zones, each with color-coded status indicators for quick situational awareness.

With simple “Easy Fix” wall plate mounting and RS485 connectivity, the MA-LCD7 ensures fast installation and reliable performance, making it an ideal solution for modern buildings.

Features

7” full-color TFT touchscreen with intuitive UI
Can operate as Repeater or Zonal Mimic (dual functionality)
40 virtual zones (Repeater mode) / 80 virtual zones (Zonal Mimic mode)
Color-coded zone indicators for Fire, Pre-Alarm, Fault, Disablement, Test, Healthy, and Unused statuses
USB port for event history download (up to 10,000 events) & firmware upgrades
Virtual control buttons (Mute Buzzer, Silence/Resound, Reset) in Repeater mode
6 physical LED indicators: Fire/Alarm, Sounders Silenced, Disablement, Fault, Zone Test, Local Power
Easy Fix plate for quick and flexible installation
Supports network event viewing and control
Lightweight, compact, and modern design to suit building aesthetics

Specifications

Mechanical: Length: 220.7mm Width: 37.7mm (including Easy Fix plate) Height: 132.7mm Weight: 500g Mounting: Surface or standard single/double backbox
Electrical: Operating voltage: 11–30V DC Quiescent current: 73mA at 24V DC Alarm current: 130.6mA at 24V DC Communication: RS485 2-wire serial link USB Port: Type A
Environmental: Operating temperature: -5°C to +50°C Storage temperature: -10°C to +60°C Humidity: 95% (non-condensing) IP rating: IP30
Connectivity: Up to 16 repeaters/mimics per Morley-IAS Max panel Power via 24V auxiliary supply (Max control panel or PSU: HLSPS50 / HLSPS25) Addressable: 1–16
