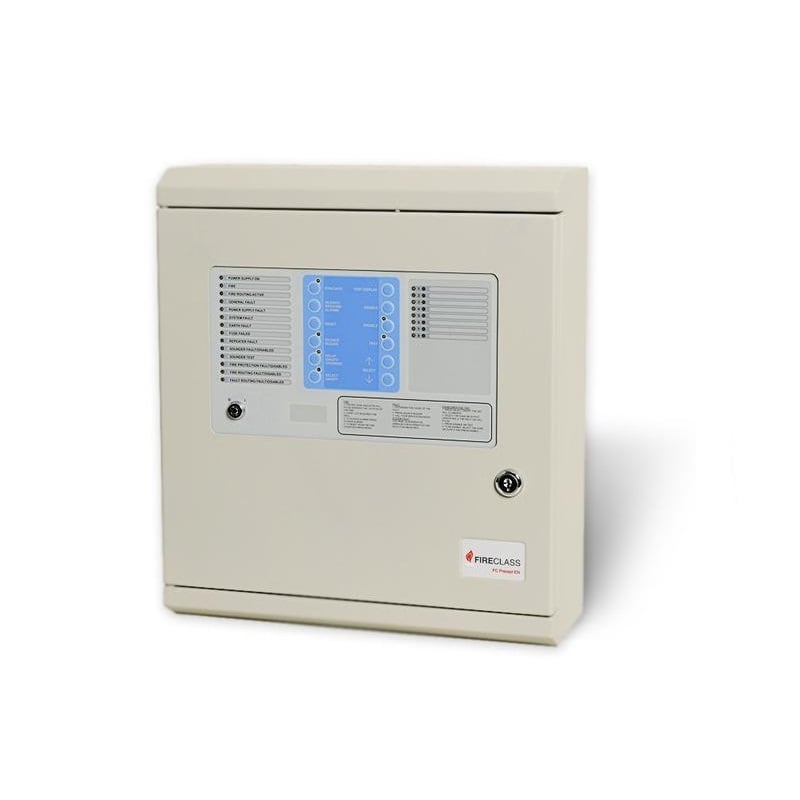

FireClass 508.032.710 Precept En 8 Zone DC Repeater
See all products from fireclassAED 1,362.90 VAT included
FireClass 508.032.710 Precept En 8 Zone DC Repeater range of conventional control panels are powerful yet user friendly. They are designed and manufactured to a high standard and are approved by LPCB to EN54 parts 2 & 4. These panels are available in 2,4,8,16 & 32 Zone versions along with suitable repeaters for all models.
Product Code : fs1118239
Brand: Fireclass
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
FireClass 508.032.710 Precept En 8 Zone DC Repeater range of conventional control panels are powerful yet user friendly. They are designed and manufactured to a high standard and are approved by LPCB to EN54 parts 2 & 4. These panels are available in 2,4,8,16 & 32 Zone versions along with suitable repeaters for all models. The 8 – 32 Zone panel models are capable of driving any combination of 8 channel output expansion boards (relays, alarm circuits and open collector 0v outputs) which can be set to be zonally activated or common output modes.
Features
- Designed to work with FireClass conventional detectors (up to 32 detectors per zone).
- IS (Intrinsically Safe) zones selectable - In this mode the EOL device is changed to a 10K resistor
- NLZ (Non Latching Zones) selectable - output relay disablement option for this function
- Zone activation resistance typically 470 or 680 Ohms eg. callpoint or input signal.
- 2,4,8,16 & 32 Zone versions available - fully fault monitored.
- Short circuit activated zones selectable
- 22 uF Capacitor zone EOL monitoring
- ‘Indication only’ zone mode option.
Specifications
- Product: 8 Zone DC Repeater Panel
- Brand: Fireclass
- Model: 508.032.710
- Mains Supply (tolerance +10 / -15%): 230V ac
- Mains Fuse (BEAB Approved Type): 1A 20mm
- Max. Power Consumption: 85W
- Max. Size Battery Space: 2 x 12V 12 Ah
- Mains Fail Batt. Current: 40 mA
- DC Supply Option (Non EN Approved): Yes - 24V
- Panel Dimensions (mm W x H x D): 325 x 370 x 126
- Weight: 6.2 Kg
