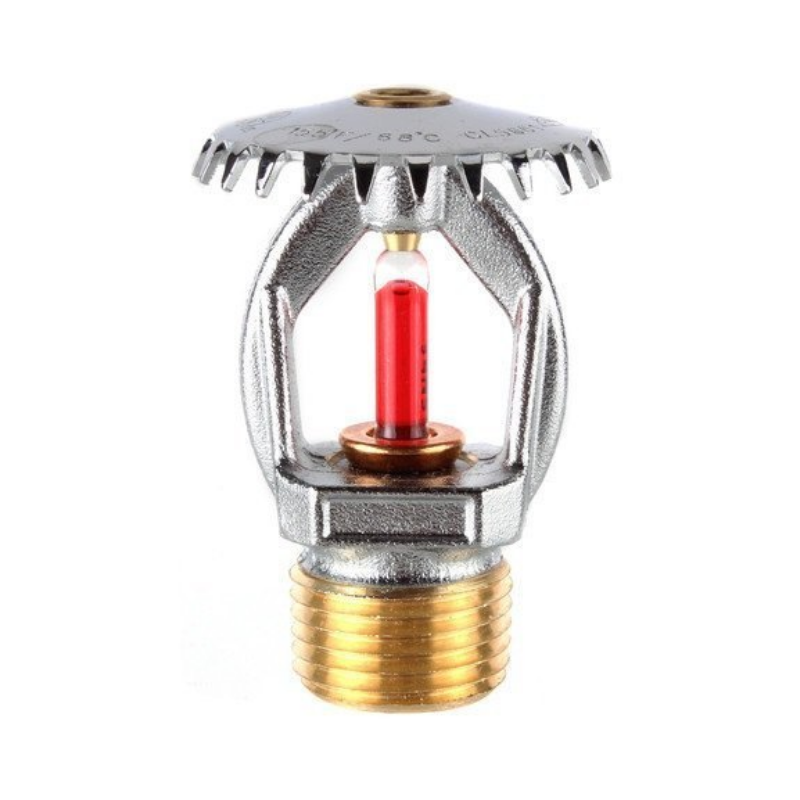

SHIELD SD1032 Upright Quick Response Fire Sprinkler 68°C
AED 28.35 VAT included
Upright quick response fire sprinkler head rated at 68°C, designed for efficient fire suppression in commercial and industrial settings.
In stock
Product Code : fs0507514
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD SD1032 is an upright, quick response fire sprinkler head featuring a 3mm frangible glass bulb that activates at 68°C (155°F). Designed for prompt and precise operation, it ensures effective fire suppression in various environments. The sprinkler incorporates a streamlined die-cast frame with a hex-shaped wrench boss for easy installation. It is suitable for light and ordinary hazard applications, adhering to NFPA 13 standards.
Features
- Quick response activation with 3mm frangible glass bulb
- Upright orientation suitable for exposed piping systems
- Rated at 68°C (155°F) for prompt fire detection
- Die-cast frame with hex-shaped wrench boss for easy installation
- Compatible with 1/2" NPT threading
- K-Factor of 5.6 (80 lpm/bar½) ensuring optimal water discharge
- Suitable for light and ordinary hazard applications as per NFPA 13
- Maximum working pressure of 175 PSI (1200 kPa)
- Factory hydrostatic tested at 500 PSI (3450 kPa)
- Manufactured by SHIELD, a trusted name in fire safety equipment
Specifications
- Orientation: Upright
- Response Type: Quick Response
- Temperature Rating: 68°C (155°F)
- K-Factor: 5.6 (80 lpm/bar½)
- Thread Size: 1/2" NPT (15mm)
- Orifice Size: 13mm
- Maximum Working Pressure: 175 PSI (1200 kPa)
- Factory Hydrostatic Test: 500 PSI (3450 kPa)
- Material: Brass
- Finish: Natural Brass
