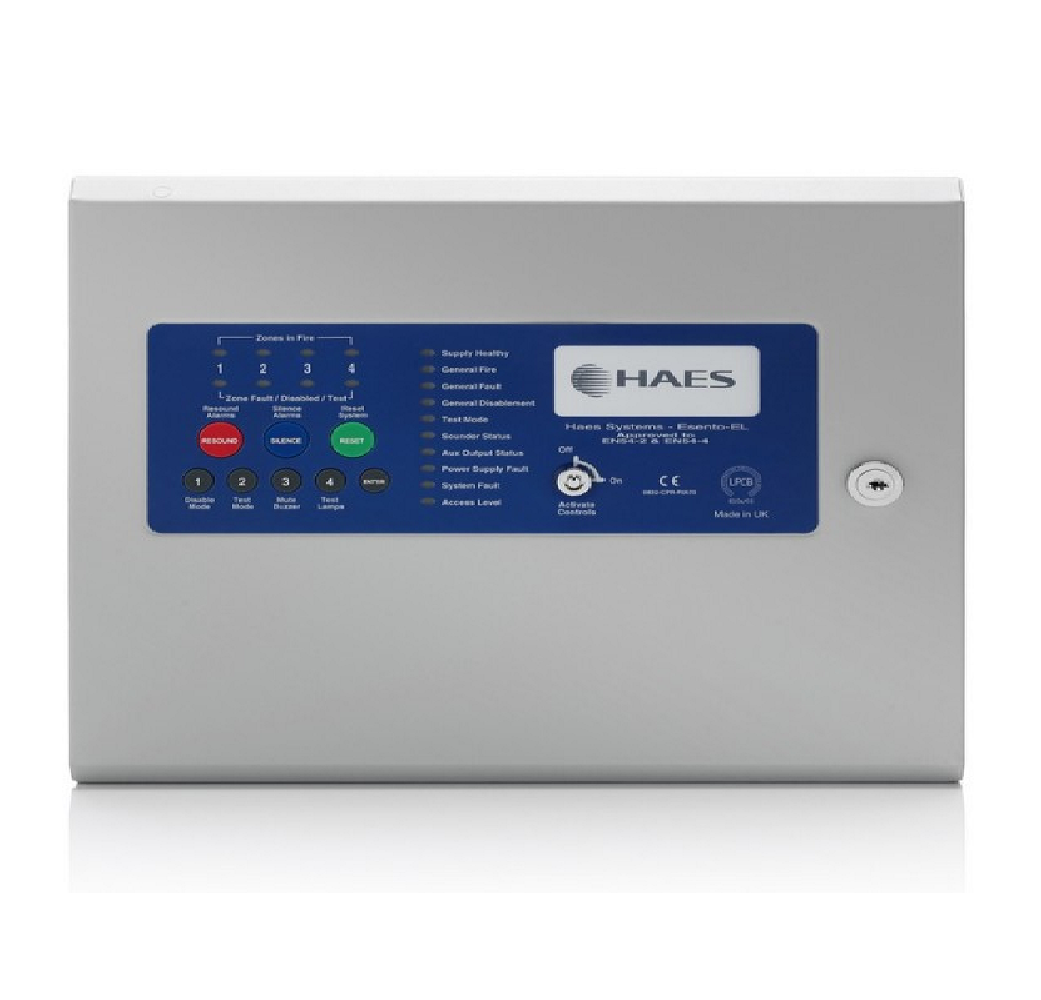

Haes ESEN-4MAR 4 Zone Conventional Esento MED Marine Approved Control Panel
AED 3,360.00 VAT included
Description
The Esento Marine 2-4 panel is available with 2 or 4 conventional zones. The programming features include programmable muster alarm zones and a false alarm management mode. As standard, all Esento Marine 2-4 panels provide two monitored sounder circuits, Fire & Fault VFCO relays and inputs to ring and pulse the sounder circuits. A separate interface card is also available to connect the panel to a ships voyage data recorder system.
The panels are supplied with a 1.25 amp internal power supply module. This module complies with the requirements of EN54-4 : 1988 and provides temperature compensated battery management charging. Esento Marine panels are approved to European standards EN54-2 & 4, Fire Detection and Alarm Systems – Control & Indicating Equipment.
Features
- 2 or 4 zones
- Activate controls via keyswitch or code entry
- Compatible with Apollo Orbis Marine detectors
- Integral detector removal monitoring
- Earth fault monitoring
- 1.25 Amp switch mode power supply Nom 27V DC
- 2 monitored sounder outputs
- 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
- 1.25 Amp switch mode power supply Nom 27V DC
- Fire & fault switched -ve outputs
Specifications
- PSU @ output Power supply voltage control line. For temperature compensation control.
- Brand: Haes
- Part Number: ESEN-4MAR
- Categories: Panels (Conventional)
- Common fire relay Fire relay contact. Clean C/O. Max 3A @ 30vdc
- Common fault relay Maintained fault relay contact. Clean C/O Max 3A @ 30vdc.
- Mains supply 230vac +10% / -15% 50Hz max current 1A
- Mains supply fuse 2 Amp (T2A 250V) Not accessible for servicing. Internal to switch mode power unit
- Power supply output voltage 19.92 - 30.09vdc Tolerance +/- 0.1%
- Maximum continuous load for battery standby (ImaxA) ImaxA = 575mA ImaxB not specified
