C-Tech CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel
AED 1,060.50 VAT included
C-Tech CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel, LPCB certified to EN54-2/4, C-TEC’s CFP 4 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes four detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.
Product Code : fs1118217
Brand: C-Tech CFP
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
C-Tech CFP704-4 Standard 4 Zone Conventional Fire Alarm Panel, LPCB certified to EN54-2/4, C-TEC’s CFP 4 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes four detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided. Optional repeaters, relay expansion boards and EN54-13 system compliance devices are also available.
Features
- System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system), optional CFP relay boards and optional EN54-13 compliant sounder circuit boards.
- Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) with optional EN54 part 13. compliance from the BSI.
- Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones.
- Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry.
- Attractive flush or surface mountable plastic lid and enclosure - no bezel required.
- Fully compatible with C-TEC's ActiV range of conventional fire detectors.
- Integral 1.5A EN54-4/A2 compliant switch mode PSU.
- Two open-collector outputs (Remote and Reset).
- Space for two x 12V 3.3Ah VRLA batteries.
- Manufactured by C-TEC in the UK
Specifications
- Product: 4 Zone Conventional Fire Alarm Panel
- Brand: C-Tech
- Model: CFP704-4
- Mains Supply: 230V 50/60Hz.
- Internal power supply: 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
- Construction & finish: Plastic lid and base; RAL7035 textured.

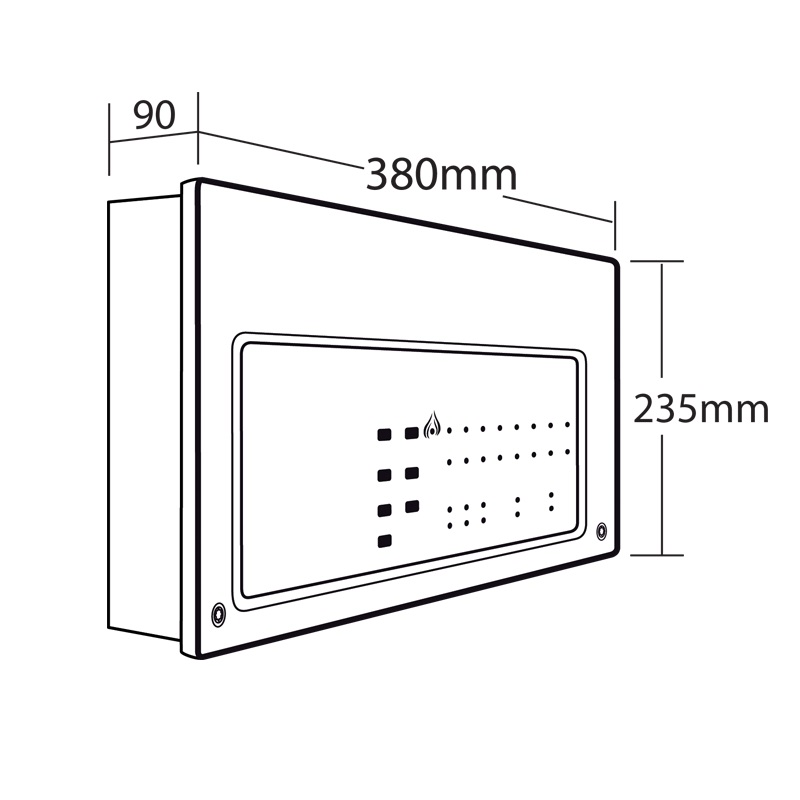

- Product dimensions (mm): 380 W x 235 H x D 96mm.
- IP Rating: IP30.
- Weight: 1.75kg (without batteries).
- Approvals/certifications: Certified to EN54-2/4 by the LPCB (176b) / (0832-CPD-1704).
- Max battery size and type: 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
- No. of detector zone circuits: 2 (Max. length per circuit is 500m).
- Max. devices per detector zone: 25 detectors (or 32 detectors/manual call points combined).
- No. of conventional sounder circuits: 4 (Max. length per circuit is 500m)
