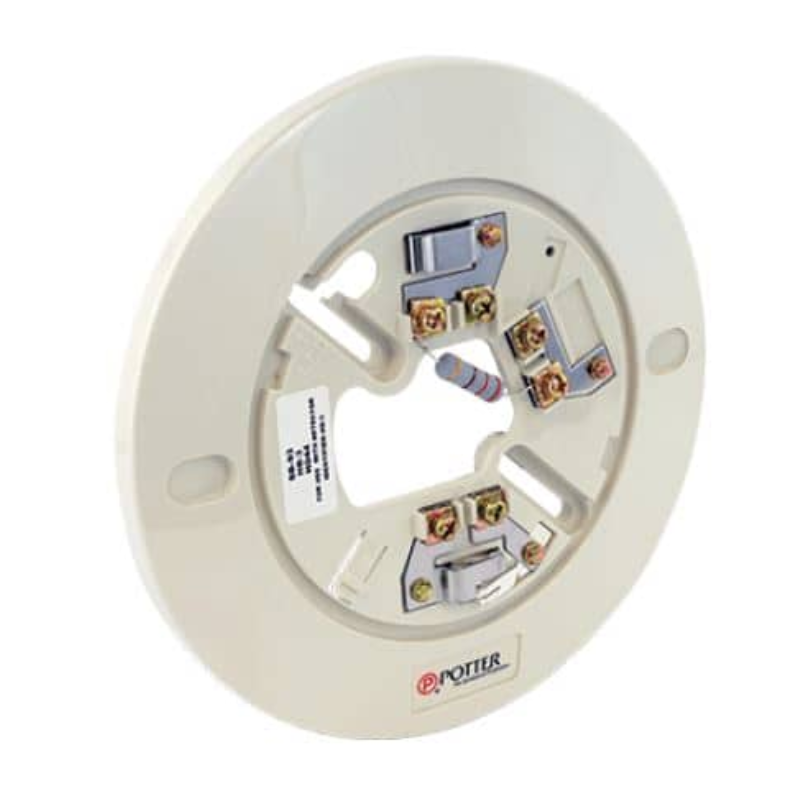

Potter SB-46 Conventional Smoke Detector Base – 24V Polarized Fire Alarm Detector Base with Annunciator Output
See all products from potterAED 57.75 VAT included
Potter SB Series detector base is a 6 polarized base with annunciator output featuring a current limiting resistor, and a blocking diode to enhance annunciator function.
Product Code : fs10057
Brand: Potter
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Potter SB-46 Conventional Smoke Detector Base is a reliable and durable 6-inch mounting base designed for use with Potter’s conventional smoke detector series. Engineered for stable 24V DC polarized operation, the SB-46 provides dependable performance for commercial, industrial, and residential fire alarm installations.
This base features built-in current-limiting circuitry and a blocking diode to support annunciator outputs, ensuring consistent signaling for remote LEDs and indicators. Compatible with standard electrical back boxes, the SB-46 offers easy installation, secure detector locking, and long-term reliability in demanding fire protection environments.
Features
- Built-In Current Limiting Resistor – Enhances annunciator performance and protects components
- 24V DC Polarized Base – Ensures stable and safe operation within conventional fire alarm circuits
- Compatible with Potter Detectors – Works with IS-24, PS-24, and PS-24H smoke detector heads
- Secure Detector Locking Mechanism – Twist-lock mount with optional tamper-resistant screw
- Annunciator Output Support – Provides 15 mA @ 24V DC for remote indicator LED modules
- Blocking Diode Included – Improves electrical stability and prevents back-feeding
- 6-Inch Detector Base – Standard size suitable for a wide range of installations
- UL / ULC Listed – Meets strict fire safety and performance standards
- Easy Installation & Wiring – Supports 3-1/4″ and 4″ back boxes
Specifications
- Model: Potter SB-46
- Type: Conventional Smoke Detector Base
- Operating Voltage: 24V DC, polarized
- Alarm / Operating Current: Approx. 46 mA @ 24V DC
- Annunciator Output: 15 mA @ 24V DC
- Mounting: Standard 3-1/4″ or 4″ electrical outlet box
- Base Diameter: 6 inches
- Compatible Detector Heads: IS-24, PS-24, PS-24H
- Construction: High-strength molded base
- Wiring Terminals: Positive In/Out, Negative In/Out, Annunciator terminals
