QuickZone QZ-4 is a 4 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is ways to install, maintain, and is simple to operate for the end user. Four fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included. Four fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs, class change and an alert input are also included. The fire zone outputs can be set as ‘Twin Wire’ by DIL switch selection. The DIL switches are also used to allow Zone interface setting and Access to Level 3 mode
Previous product
Back to products
Emergency Firefighting Equipment Trolley (Height x width x depth: 2015 x 1385 x 460)mm
AED 3,780.00 VAT included
Next product
Kentec Sigma CP-R E0180L2 8 zone repeater panel
AED 1,010.10 VAT included

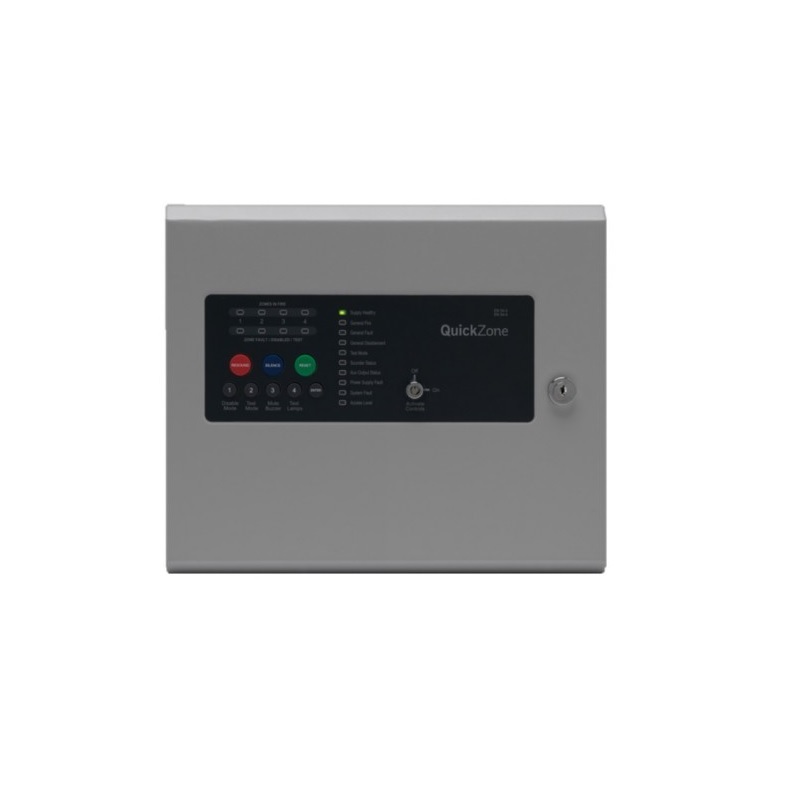

Advanced QuickZone QZ-4 Conventional Control Panel 4 Zone
AED 1,513.63 VAT included
QuickZone QZ-4 is a 4 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is ways to install, maintain, and is simple to operate for the end user. Four fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included.
Product Code : fs1118211
Brand: Advanced
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: 4 Zone Conventional Control Panel
- Brand: Advanced
- Model: Quickzone QZ-4
- LED Indicators: 5 red (1xFire, 4xZonal) 1 Green (Power) 13 Amber (4xZonal 9xFault & System)
- Controls: 3 Colour coded buttons (Resound, Silence & Reset), 1-4 numerical buttons and Enter
- Key-Switch Inpu: Level 2 access enable key-switch or code entry
- Battery Capacity: 2x3.2Ah (Internal 12V SLA)
- Enclosure/Colour: Lockable, Steel IP30 / RAL7035
- Size H x W x D (mm): Back box 250x300x80, Door 260x308x23 (Return)
- Approvals: EN54-2:1997 + A1:2006 & EN54-4: 1997 + A1:2002 + A2:2006
- Zonal circuit configuration: Conventional or Twin Wire (Selectable by DIL switches)
- Mains Supply: 230V 50Hz (+10%, -15% tolerance) 1.0A Max
- On-Board Sounder Circuits: 2 Monitored (Fused 500mA)
- Auxiliary Supply: 28Vdc 400mA (Continuous load)
Features
- DIL selectable conventional or twin-wire (savwire) set up
- Space for up to 3.2Ah batteries
- Class change and alert inputs
- 2 monitored sounder circuits
- False Alarm management
- 1 Amp switch mode PSU
- Approved to EN54 2 & 4
- Fire and fault relays
- 3 year warranty
