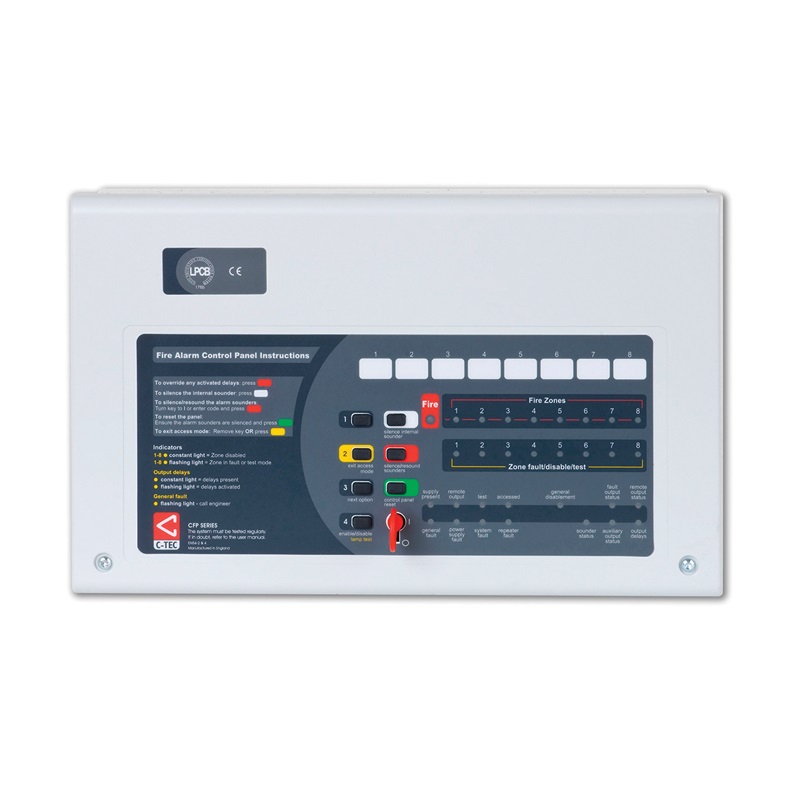

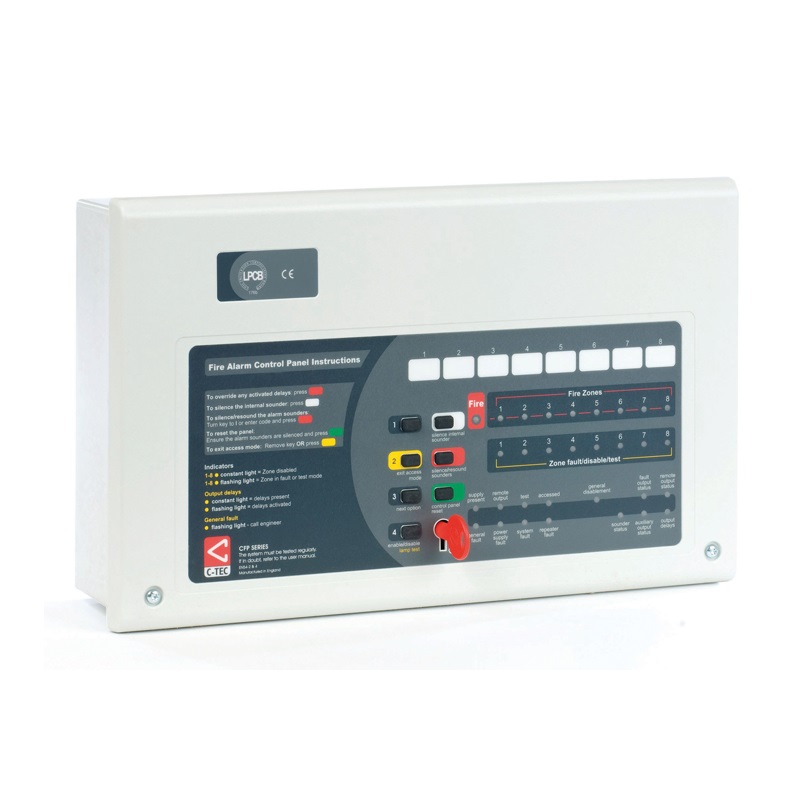

C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel
AED 886.20 VAT included
C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel, LPCB certified to EN54-2/4, C-TEC’s CFP 8 zone economy fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes eight detector zones, four conventional sounder circuits, class change and alert inputs, four open collector outputs
Product Code : fs1118222
Brand: C-Tech CFP
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: Economy 8 Zone Conventional Fire Alarm Panel
- Brand: C-Tech
- Model: CFP708E-4
- Mains supply: 230V 50/60Hz.
- Internal power supply: 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
- Max battery size and type: 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
- Alarm voltage: 27V max, 20V min (final battery voltage).
- IP Rating: IP30.
- Weight: 1.75kg (without batteries).
- Approvals/certifications: Certified to EN54-2/4 by the LPCB (176b) / (0832-CPR-F0576).
Features
- Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry
- Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB)

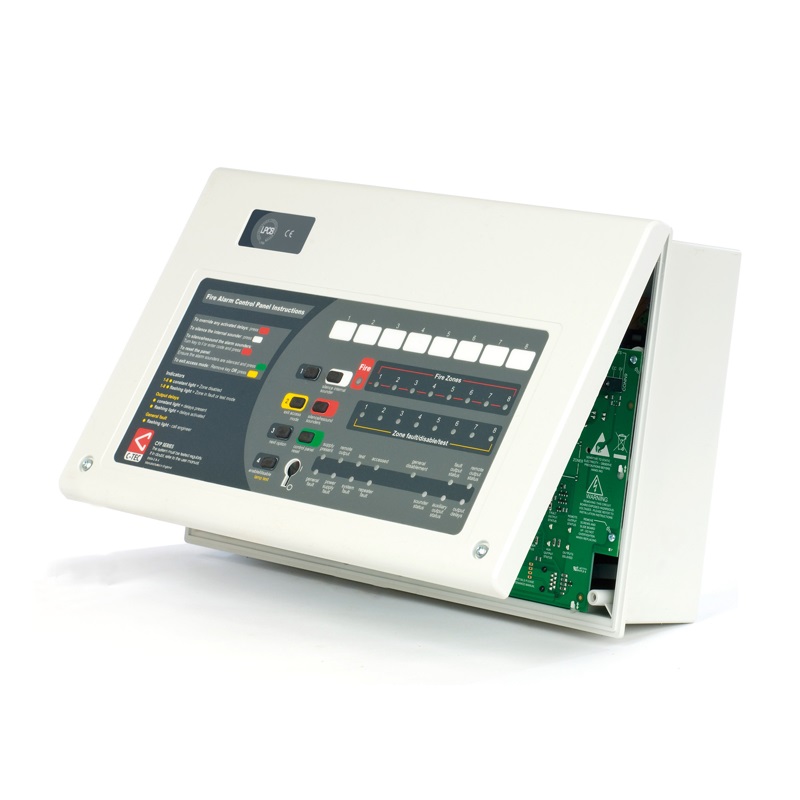

- Attractive flush or surface mountable plastic lid and enclosure - no bezel required
- Fully compatible with C-TEC's ActiV range of conventional fire detectors
- Four open-collector outputs (Fire, Fault, Remote and Reset)
- Integral 1.5A EN54-4/A2 compliant switch mode PSU
- Wide range of test and fault-finding facilities
- Four conventional sounder circuits
- No system expansion connections
- Manufactured by C-TEC in the UK
